SLF6300 Microscope Fluorescence Adapter,Fluorescence excitation light source adapter for stereo microscope

SLF6300 Microscope Fluorescence Adapter,Fluorescence excitation light source adapter for stereo microscope

Product introduction

SLF6300Microscope Fluorescence Adapter
Fluorescence excitation light source adapter for stereo microscope

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923
E-mail: info@sunlonge.com, sunlonge@gmail.com

Fluorescence excitation light source adapter for stereo microscope:

SLF 6300 excitation light source can offer a complete solution for the stereo microscope’s fluorescence observation need. It is with all the necessary accessories. With our SLF6300 excitation light source adapter, without destroying the existing stereo microscope, the protein fluorescence excitation test can be completed. We have developed a series modular excitation light source, up to 8 different solution for your selection. You can have one or several solutions for the protein excitation light source.

Technical parameter:

Model

SLF6300-XX fluorescent excitation light source adapter for stereo microscope

Remark

LED No and specification

1 pcs 5W LED and optical lens





Customize-design

LED wavelength

365NM

395NM

455NM

525NM



Intensity of excitation light source(30CM)

90000

uw/cm2

120000

Uw/cm2

20000Lx

50000lx



Irradiated area (Φ)

Φ5-15cm diameter aperture

Dimming

Had rotation dimming and light modulator

Power

Light modulator

Size and specification

80 * 40mm   Net weight: 0.1kg without accessory

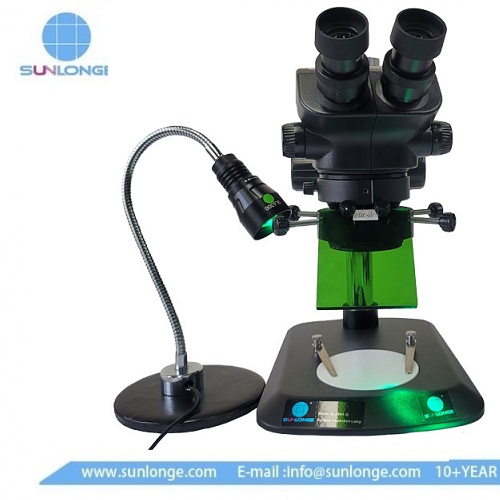

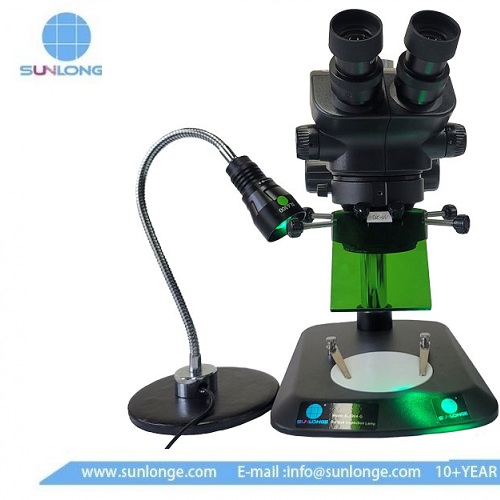

Just fix 1 set of SLF 6300 excitation light source adapter on your microscope. It can be used for various fluorescence excitation test such as fruit flies, zebrafish, and salamanders.

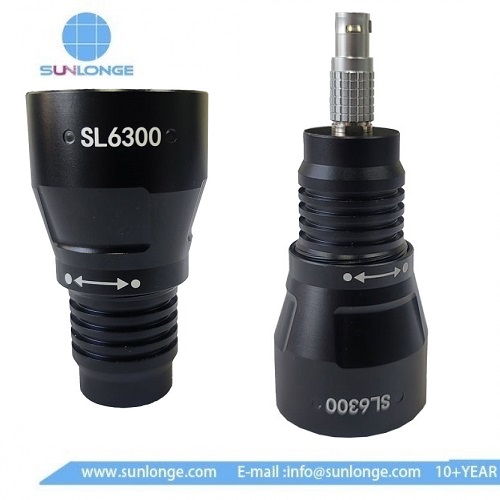

SLF6300 fluorescence excitation light source adapter:

a complete system with an excitation/emission, include: SLF 6300 lamp holder, flexible gooseneck, magnet lamp holder, special dimmer, adapter ring, observation filter.

1.  Flexible gooseneck lamp holder and power supply, modular light source, can be combined freely.

2. SLF800 adapter ring for microscope, suitable for any stereoscope and filter.

3. Light modulator: a customize-design dimmer, can be adjust the brightness of excitation light source, from 0-100%,

4. Filter: Usually 3 different filter for your selection (SLF400-UV; SL500-blue light; SLF600-green light)

5. Observation filter: several different observation filter for your selection, SLFF400-ultraviolet; SLFF500—blue light; SLFF600—green light.

Fluorescence list and selection of various observation wavelength:

UV: excitation wavelength 330nm~400nm emission wavelength: 425nm

Violet: excitation wavelength 395nm~415nm emission wavelength: 455nm

Blue: Excitation wavelength: 420nm~485nm Emission wavelength: 515nm

Green: Excitation wavelength: 460nm~550nm Emission wavelength: 590nm

Excitation light source code

Excitation wavelength

Emission wavelength

Observable fluorescence

365NM-U

365NM

425NM

DAPI

395NM-V

395NM

455NM

CFP,BFP

455NM-B

455NM

510NM

GFP,fluorescein

525-G

525NM

595NM

DsRed,TdTomato

SLF6300 series products abbreviation and code:

SLF6300XX

U: 365NM ultraviolet: V:395NM violet

B: 455NM blue light: G: 525NM green light

A: 595NM amber light: R: 625NM red light.

SLF 6300 fluorescence excitation light source advantage:

1. Do not need to disassemble or modify the microscope, can be installed in just one minute.

2.Modular excitation/emission light source- – can be selected according to demand, can be expanded at any time.

3. Can be fixed on any stereo microscope and interchangeably between different stereo microscope.

4. Sample, compact, lightweight, easy to carry.

5. Special filter, do not interfere with the white light

6. Stepless dimming function, the intensity of inspection lamp can be adjusted according to the test demand.
