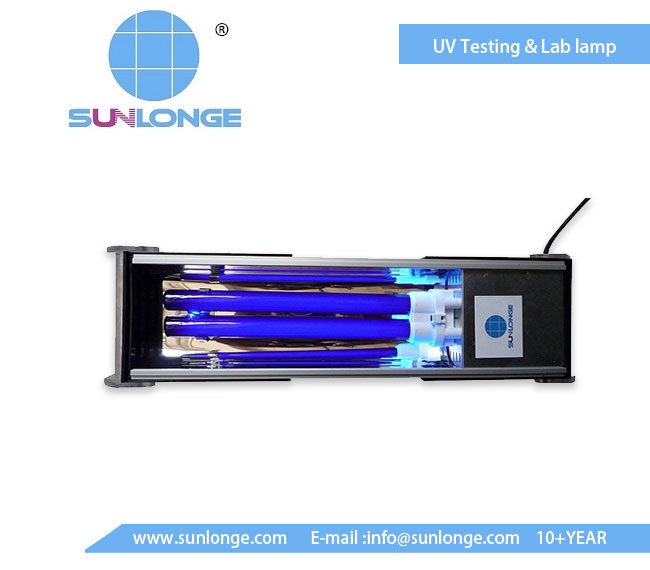

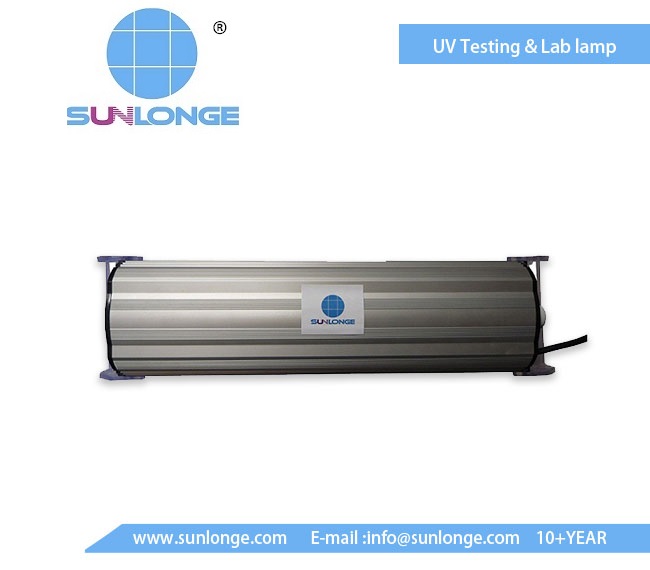

UVA-36W Blacklight Double Tube Unit

UVA-36W Blacklight Double Tube Unit

Product introduction

UVA-36W Blacklight Double Tube Unit

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923
E-mail: info@sunlonge.com, sunlonge@gmail.com

UVA-36W Blacklight Double Tube Unit


1.High frequency electronic ballast for optimum performance

2.IP 54 rated, therefore suitable for use outdoors and in wet environments

3.Extruded  housing with integral control gear

4.Compact, lightweight and durable

5.Mounting brackets for easy mounting and adjustment to directly irradiate the required area

6.Modular design allows multiple UV lamp units to be used for large areas,Optional wrapped tubes in

fragments in the event of breakage

Power supply:110V 60HZ or 220V 50HZ

2*18 W blacklight blue UV tubes produce the UV light spectral output shown, optimum for UV-A fluorescent inspection applications.

Technical data:

UV tubes

2 x1 8 W H blacklight blue

Estimated useful life of UV blacklight blue tubes

3,000 hours depending upon age, environment, switching and cooling


UVL full spectrum grade

Power supply

110V 60HZ or 220V 50HZ


36 W

Fuse protection

3 A


1.5 Kg

Operating environment temperature range

0 – 50oC

IP  rating

IP 54



Main purposes:

Fluorescence detection:fluorescent penetrant inspection, fluorescent magnetic particle inspection
Pollution check: electronic components, boards, dust inspection, LCD panel, checked into the clean room
Leak Check: hydraulic machines, sump, pipe and other oil spill inspection, leak detection using fluores cent agents
