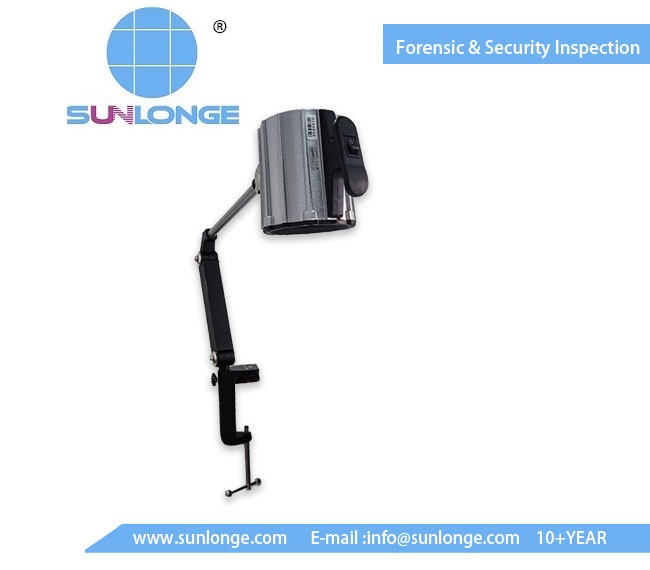

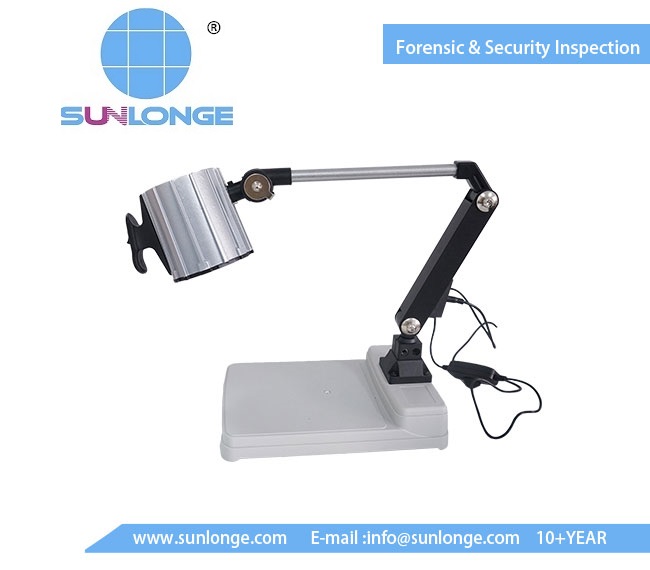

SUPER UV LED LAMP SL8804

SUPER  UV LED LAMP SL8804

SUPER  UV LED LAMP SL8804 Seriesadapts the most advanced LED cold light source technology,they uses Nichia 5 Watt 365nm of NCSU033B(T)  and  Optical lenses.The LED life is 30,000 hours.

UV-A Intensity  is 21000UW/cm2  in 38cm Distance. Ergonomic design reduces the operator stress, 4x SPOT 365 nm uv led with reflection  mirrow universal module design for AC and DC operation simple operation

SPECIFICATIONS:

Model: AC SUPER  UV LED LAMP SL8804 Series;SL8804-Hight Version;SL8804-Standard Version;SL8804-Aerospace RRES90061 Abbreviation:SL8804-H;SL8804-S;SL8804-AR(

Peak-Wavelength:365-370NM;

UV Intensity:4000-21000UW/cm2 at 15inch(380mm)- -See the list;

Low visible light emission :less than 2 foot-candles (22 lux)

Number of UV LEDs: 4 x 5W 365NM UV LED with lens, average LED life is 30,000 hours

Power supply: 100-240V  AC; AC Power Code: 3 M  length.

Irradiated Area in 38cm Distance:150*180mm

Stability of UV Intensity: > 90%

Product Size: 220*210*110mm   ; WEIGHT :920g without  accessories

SUPER UV LED LAMP SL8804

SL8804AC Series:SL8804-Hight Version;SL8804-Standard Version;SL8804-Aerospace RRES90061 Abbreviation:SL8804-H;SL8104AC-S;SL8804-AR(We master the core technology, We can adjust the intensity of the UV according to customer requirements)

Model

SL8804AC-Aerospace RRES90061

SL8804AC-Standard Version

SL8804AC-Hight Version

Number of UV LEDs

4 x 5W 365NM UV LED

The  Smae

The Same

UV Intensity at 15inch(380mm)

4000-5000uw/cm2

13000uw/cm2

21000uw/cm2

Visible light emission

< 0.5 FC(5 lux)

 with white light filters Meets ASTM E3022 and  RRES 90061

< 2 FC(20 lux) with black light filters

< 2 FC(20 lux) with black light filters

Irradiated Area in 38cm Distance

180*260mm

130*180mm

120*160mm

Power supply

100-240V  AC; AC Power Code: 3 M  length

The Same

The Same

Suitable for industry

All Aeronautics NDT

Except Aeronautics NDT

Except Aeronautics NDT

SUPER UV LED LAMP SL8804

Attention to:SL8104-Aerospace RRES90061   Meets Rolls-Royce RRES 90061 Requirements

ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant

Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.

FEATURES:

1. 5W 365NM NICHIA True 365 nm wavelength UV light;

2. Less than 2 FC  Candles of white Light;

3.Instant On/Off, no warm up or cooling down time;

4. No filter or bulbs to replace; Mercury free;

5. 100% solid state cold ensures working properly in strong magnetic field.

STANDARD PACKAGE INCLUDING:

 AC SUPER  UV LED LAMP SL8804, carry case;

OPTIONAL ACCESSORIES:

Spare UV Filter  Glasses ( orange or yellow);

Application:

Penetration testing, fluorescence detection;Biopolymers, fluorescence observation

Refrigerant leak detection;Engine oil leak detection

Criminal Investigation: fingerprints, blood observed

Fluorescence observation of ore;Detection of oil cleaning

SUPER UV LED LAMP SL8804

Main purposes:

Fluorescence detection: iron and steel, non-ferrous metals, automobiles, aircraft, fluorescent penetrant inspection, fluorescent magnetic particle inspection

Pollution check: electronic components, boards, dust inspection, LCD panel, checked into the clean room

Leak Check: hydraulic machines, sump, pipe and other oil spill inspection, leak detection using fluorescent agents

Degreasing cleaning validation: the food industry, kitchen, cooking utensils, tableware degreasing cleaning
