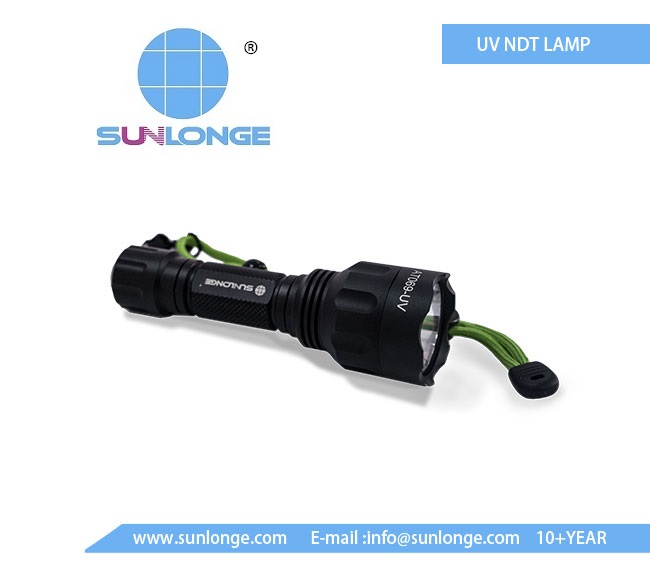

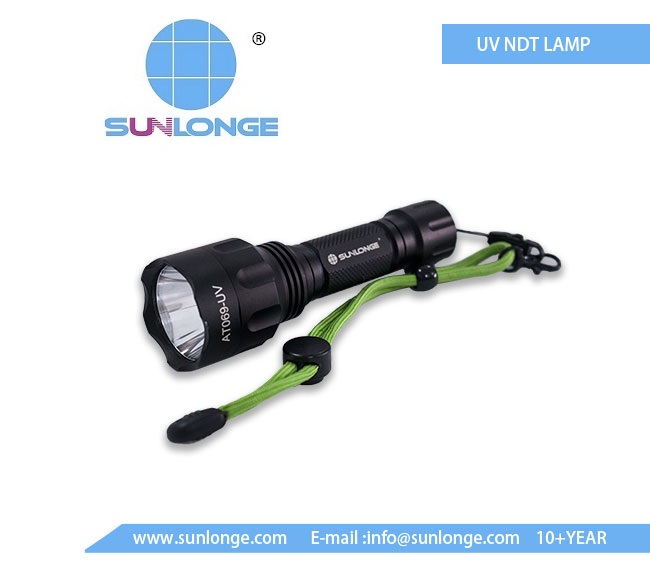

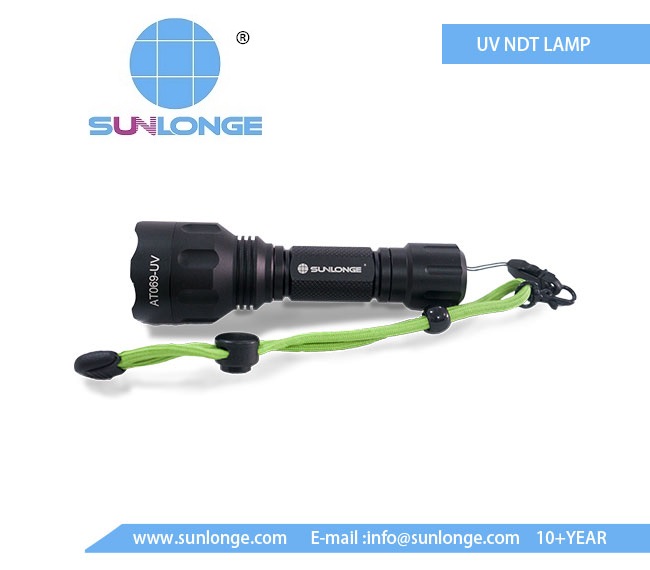

AT069-UVUV LED NDT LAMP

AT069-UVUV LED NDT LAMP

Product introduction:

UV LED FLASHLIGHT

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923
E-mail: info@sunlonge.com, sunlonge@gmail.com

SUNLONGE AT069UV  uses Nichia 5 Watt 365nm
Use in Applications such as NDT INSPECTION and UV CURING. Lamp: 5W 365NM UV LED, Runtime (high): 2.5 hours

Specification
Use in Applications such as NDT INSPECTION and UV CURING.

Model: AT069UV  Series;AT069-Hight Version;AT069-Standard Version;AT069-Aerospace RRES90061 Abbreviation:AT069-H;AT069-S;AT069-ARThe Original Model:AT069-35K,25K,3K
Lamp: 5W 365NM UV LED,

Runtime (high): 2.5 hours, SIZE: 145mm * 45mm * 25mm,
Weight: 160g (without batteries)

•UV source: 365NM NICHIA of NCSU033B(T)
•Intensity: >35000 μw/cm2 at 38 cm (15 inches)
•Wave length: 365 nm

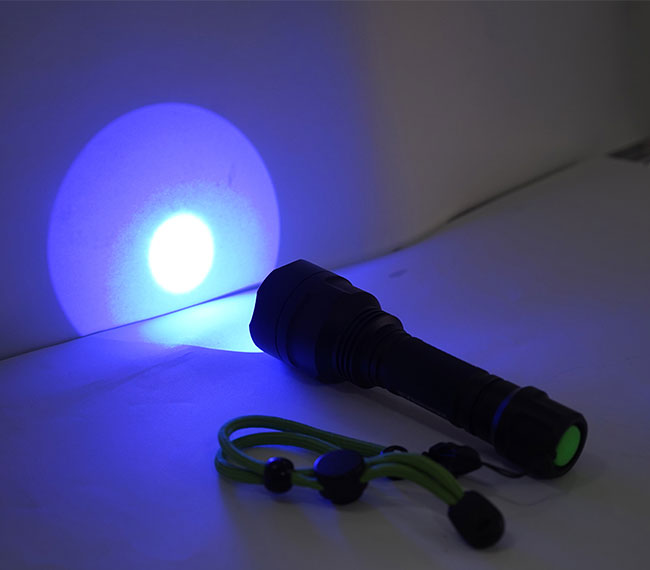

•Distribution angle (beam): spotlight
•The centre of the light beam is 30 mm (1.2 inches) Ø
•The whole light beam is 50 mm Ø, at a distance of 38 cm (15 inches)
 AT069-UVUV LED NDT LAMP

AT069 Series:AT069-Hight Version;AT069-Standard Version;AT069-Aerospace RRES90061 Abbreviation:AT069-H;AT069-S;AT069-ARThe Original Model:AT069-35K,25K,3K(We master the core technology, We can adjust the UV intensity  according to customer requirements)

Model

AT069-Aerospace RRES90061

AT069-Standard Version

AT069-Hight Version

light cup

Flood light

orange light cup

(Mid light)

Smooth light   cup  ( spot light)

Number of UV LEDs

1 x 5W 365NM UV LED

The  Smae

The Same

UV Intensity at 15inch(380mm)



2000uw/cm2



25000uw/cm2



35000uw/cm2



Visible light emission

< 1 FC(10 lux)
   with white light filters Meets ASTM E3022 and  RRES 90061



< 2 FC(20 lux)  with black light filters



< 2 FC(20 lux)  with black light filters

Irradiated Area in 38cm Distance



150mm(Diameter)

80mm (Diameter)



50mm(Diameter)

Power supply

18650 lithium  battery



The Same



The Same

Suitable for industry

All Aeronautics NDT

Except Aeronautics NDT

Except Aeronautics NDT

 Attention to:AT069-Aerospace RRES90061   Meets Rolls-Royce RRES 90061 Requirements
ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant

Battery for the SUNLONGE AT069-UV
• 2200 mAh Lithium-Ion, 3.7 V• Running time: approx. 3 hrs• Charging time: approx. 8 hrs
AT069-UVUV LED NDT LAMP

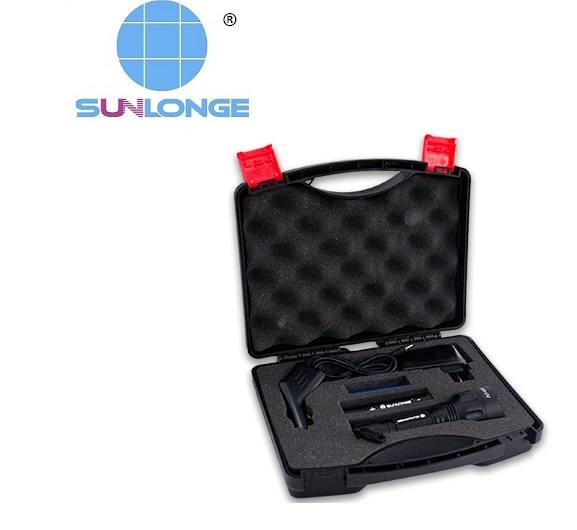

SUNLONGE AT069-UV Torch Kit comes with:
•UV LED Torch Light.
•Charger for use from electrical outlet.
•Charger for use in vehicle via cigarette lighter.
Connection.
•Belt nylon bag.

  Application:

Penetration testing, fluorescence detectionBiopolymers, fluorescence observation

Refrigerant leak detectionEngine oil leak detectionCriminal Investigation: fingerprints, blood observed

Fluorescence observation of ore,Detection of oil cleaning

Main purposes:

Fluorescence detection: iron and steel, non-ferrous metals, automobiles, aircraft, fluorescent penetrant inspection, fluorescent magnetic particle inspection

Pollution check: electronic components, boards, dust inspection, LCD panel, checked into the clean room

Leak Check: hydraulic machines, sump, pipe and other oil spill inspection, leak detection using fluorescent agents

Degreasing cleaning validation: the food industry, kitchen, cooking utensils, tableware degreasing cleaning

IMPORTANT SAFETY INSTRUCTION

1.Read all instructions.

2. Do not operate the flashlight if it has been damaged.

3.The AT069-UV 365 must be fully charged before first use.

4.Caution: Use only the battery charger packed with the flashlight. Do not attempt to use the charger to recharge any other product.

5. Use only the We provide the battery  batteries

6.The AT069- 365 is not approved for use in hazardous atmospheres.Do not attempt to use it in areas requiring explosion-proof lighting.

7.Never  use this equipment in any manner not specified in these instructions, because your protection may be impaired

CHARGING AND USE

The AT069  flashlight comes equipped with a battery chargeravailable in several different voltages.

1. Fully charge both batteries before first use.

2. Place the batteries in the battery charger cradle. The light on each battery,charger will show green when charged, and red when the battery is low. A ull charge for the  batteries will take approximately 6 hours

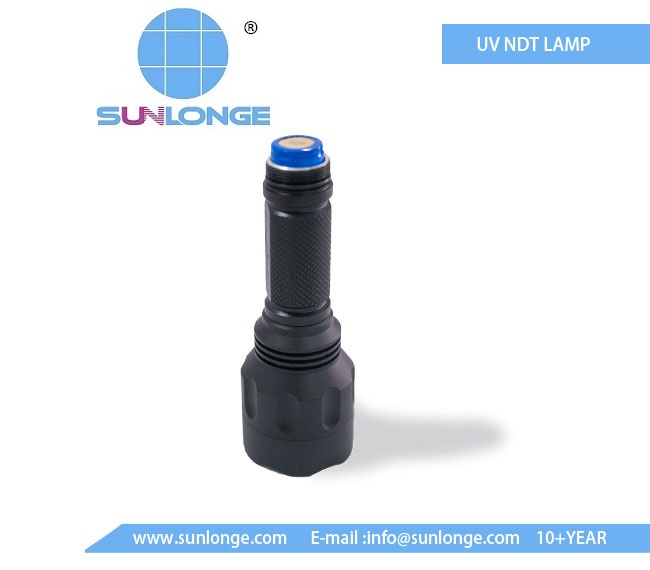

3.Turn the knob on the bottom of the flashlight to open the battery compartment. Insert one Li-on battery, positive end down, and close the compartment

4.AT069- 365 UV flashlight of the line design and The charger has special functionsit has polarity protection function( if you put the battery inside the aluminum cylinder with wrong polarity, the charger and flashlight can not explode . It’s very safety.).

5. Turn the knob on the bottom of the flashlight to open the battery compartment. Insert one Li-on battery, positive end down, and close the compartment.

6.The flashlight will operate for up to 2.5 hours on a fully charged battery, Press the switch to light and use the AT069-UV
