The Vulture UV LED LAMP SL8904AC Series

The Vulture UV LED LAMP SL8904AC Series

Product introduction:

DIMMER – The UV light can be dimmed down up to 20% its full capacity.

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923
E-mail: info@sunlonge.com, sunlonge@gmail.com

The Vulture UV LED LAMP SL8904AC  Series:

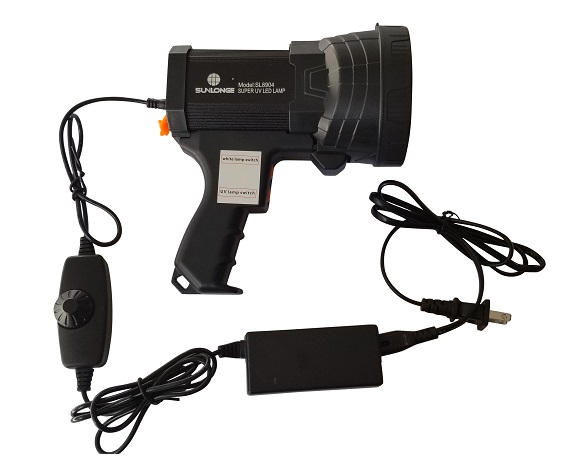

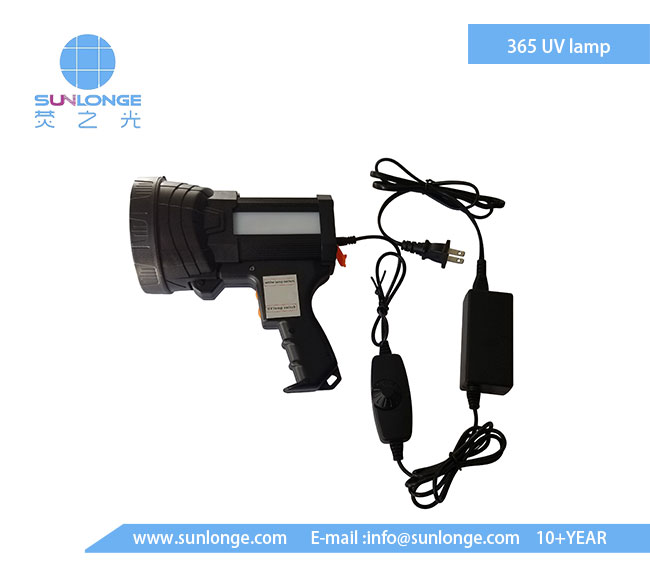

     The Vulture  UV LED LAMP SL8904AC Series is the hand-held NDT inspection lamp with white light and UV light emissions as per to ASTM E 3022 and Rolls-Royce RRES 90061 Requirements;The Vulture SL8904AC  Series of inspection uv ndt lamp have been specifically designed to meet various industry standards. The beam profile of the UV Light is extremely homogeneous without any footprints showing from the LED’s shades, dark spots or other disturbing defects; The Vulture SL8904AC  Series  feature 4 powerful UV-A (365 nm) LEDs plus 6  convenient white light LED

 SPECIFICATIONS:

 Model:The Vulture UV LED LAMP SL8904AC Series;SL8904AC-Hight Version;SL8904AC-Standard Version;SL8904AC-Aerospace RRES90061 Abbreviation:SL8904AC-H;SL8904AC-S;SL8904AC-AR

 Peak-Wavelength:365-370NM;

 UV Intensity:4000-21000uw/cm2 at 15inch(380mm) -See the list;

 Low visible light emission :less than 2 foot-candles (22 lux)

 Number of UV LEDs: 4 x 5W 365NM UV LED with lens,  6 White Light LED,average LED life is 30,000 hours

 Power supply: 100-240 universal chargers  AC/50HZ; The Dimmer function

 Irradiated Area in 38cm Distance:260*180mm

Stability of UV Intensity: > 90%

 Product Size: 180*190*106 mm   ; Weight :680g without  accessories;

The Vulture UV LED LAMP SL8904AC Series

Model:The Vulture UV LED LAMP SL8904AC Series;SL8904AC-Hight Version;SL8904AC-Standard Version;SL8904AC-Aerospace RRES90061

Abbreviation:SL8904AC-H;SL8904AC-S;SL8904AC-AR

(We master the core technology, We can adjust the intensity of the UV according to customer requirements requirements)

Model

SL8904AC-Aerospace RRES90061

SL8904AC-Standard Version

SL8904AC-Hight Version

Number of UV LEDs

4 x 5W 365NM   UV LED

White of LEDS

6   White Light LED(The side light)

UV Intensity at 15inch(380mm)

4000-5000uw/cm2

13600uw/cm2

22000uw/cm2

Visible light emission

< 0.5 FC(5 lux) with   white light filters Meets ASTM E3022 and  RRES 90061

< 2 FC(20 lux)

 with black light filters

< 2 FC(20 lux)

 with black light filters

Irradiated Area in 38cm Distance

186*260mm

136*180mm

126*160mm

Power supply

100-240V  AC; Dimmer – The UV light can be dimmed down up to 20% of 100% its full  capacity.

Suitable for industry

ll Aeronautics NDT

Except Aeronautics NDT

Except Aeronautics NDT

Attention to SL8904-Aerospace RRES90061   Meets Rolls-Royce RRES 90061 Requirements ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant  Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.

The Vulture UV LED LAMP SL8904AC Series

Features

100% solid state circuit ensures working properly in strong magnetic field;

DIMMER – The UV light can be dimmed down up to 20%  its full  capacity.

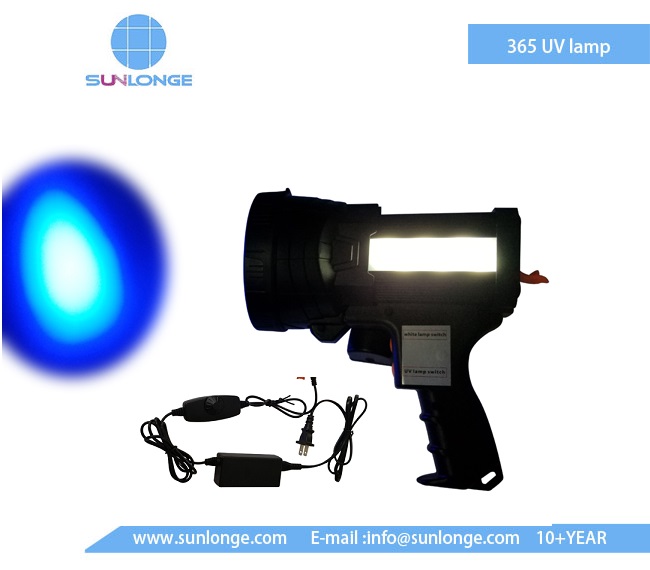

UV light and White light  can be used simultaneously, they use 2 separate switches

Safe and pure UV-A content with no UV-B and UV-C,almost no visible light.

The SL8904-AR  ndt lamp is less than 5000μW/cm2 at 380mm.

Extremely large coverage area of up to 260mm, with a minimum UV-A intensity of 1,000 μW/cm2

Unique mechanical cooling system keeps LEDs cool to maintain optimum light output during extended use.

Each LED is with long expected lifespan of 30,000 hours.

The start button provide instant power and the light  use 2 separate switches -on the pistol handle for ease of use.

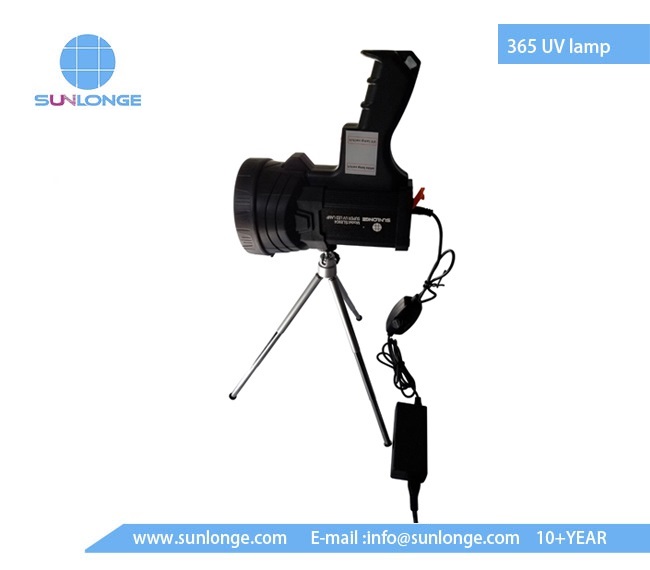

The UV NDT LAMP can use the  tripod for easy operation and use in different situations

Meet Wavelength specifications for FPI and MPI. IP54 approved for water spray and external bodies.

 STANDARD PACKAGE INCLUDING:

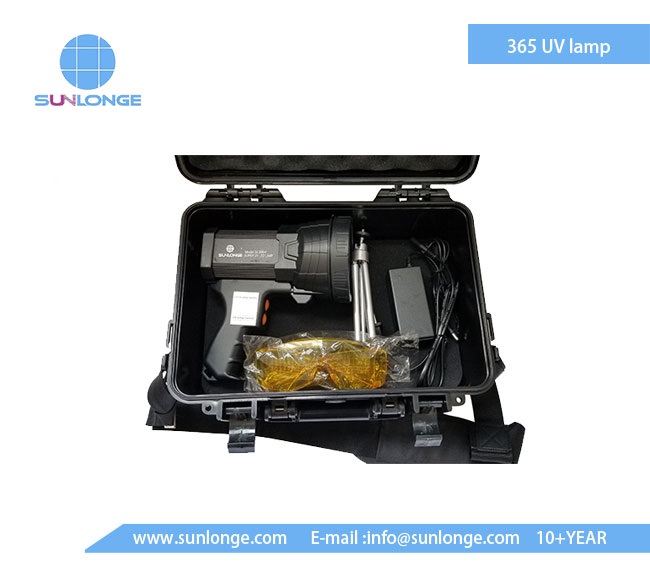

 SUPER UV LED LAMP SL8904AC, Charger, The Waterproof toolkit

 OPTIONAL ACCESSORIES:

 Spare UV Filter  Glasses ( orange or yellow); the  tripod

The Vulture UV LED LAMP SL8904AC Series

 Application:

 Penetration testing, fluorescence detection;Biopolymers, fluorescence observation

 Refrigerant leak detection;Engine oil leak detection

 Criminal Investigation: fingerprints, blood observed

 Fluorescence observation of ore;Detection of oil cleaning
