Product description:Pipelines Fluorescent Leak Dyes;Pipelines Fluorescent Leak Detection;

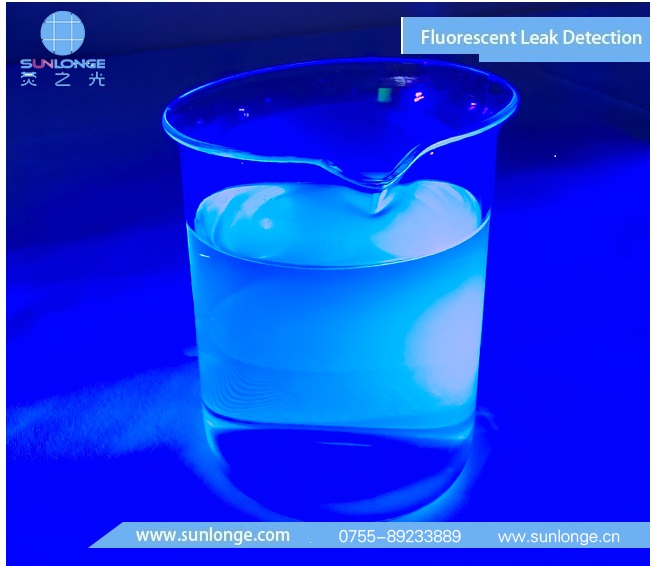

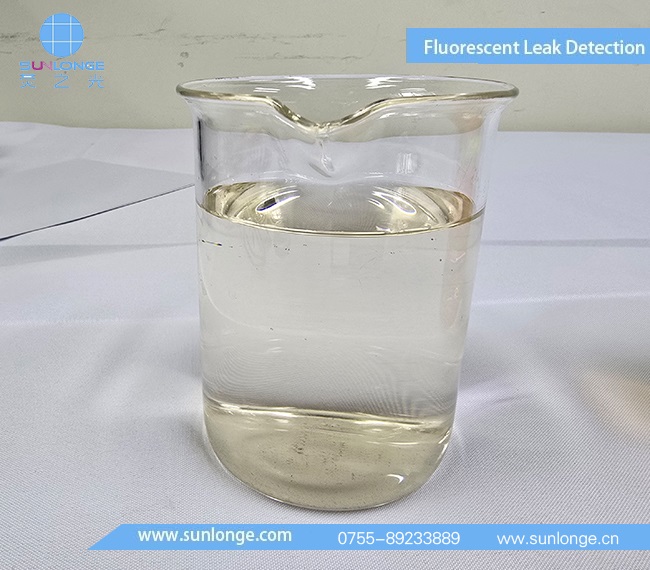

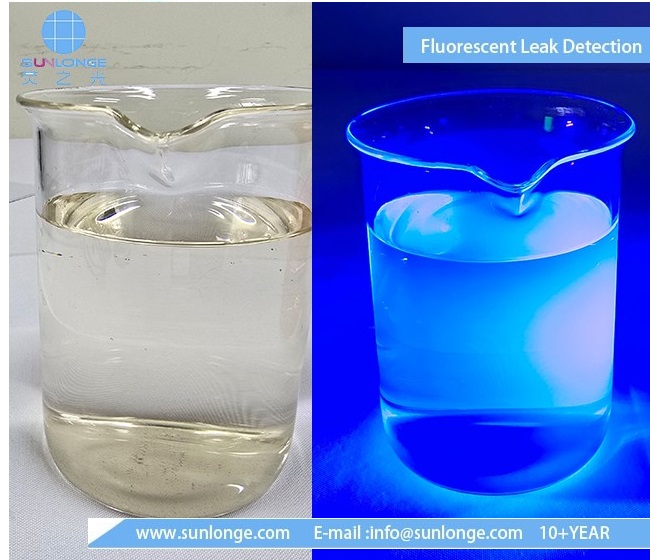

SL3000 Water soluble fluorescent blue tracer dye is a concentrated water-soluble fluorescent tracer dye containing styrene derivative. This product is colorless transparent liquid after dilutions and fluoresces azure under UV light. The product is very good at acid resistance and can be excellent fluorescent properties even at lower or higher PH values; excellent sunlight fastness and fastness to acids/alkali fastness. (Colorless water soluble fluorescent UV dye are diluted colorless liquid that is invisible to the naked eyes, however visible under UV light. There are some special test scenarios that require the colorless fluorescent tracer dye )
SL3000 colorless water soluble fluorescent blue tracer dye typical property
Content | Data |
Suitable wavelength for fluorescence inspection | 365NM |
Typical usage ratio(L) | 2—5ml |
Solubility(Petroleum products) | Insoluble |
Solubility(water) | Fully dissolved |
Density(20 °C) | 1.0—1.1 |
(ASTM D-3278) Flash point | >100°C (212°F) |
Ionic | Anionic |
Stickiness | ≤60 |
Seal Material Compatibility | All rubber, plastic and metal parts (including concentrated and diluted dye) |
SL3000 colorless Water soluble fluorescent blue tracer dye recommended use level:
The following recommended dosing amounts are starting dosing amounts for typical applications, but the true dosing amount depends on:UV intensity, fluorescent intensity, background color of the system being spiked, desired fluorescent intensity, and light intensity of the work environment.
Water: 1200-2000 ppm The addition ratio is: 2-5/1000: (that is, 2 liter of tracer dye can be mixed with 5 liters tracer dye can be fixed with 500 liters of water; the price of the tracer dye depends largely on the concentration ratio, SL3000 is a super-concentrated tracer.
Application:Pipelines Fluorescent Leak Dyes;Pipelines Fluorescent Leak Detection;
Colorless fluorescent tracer dye, soluble in water, visible only under UV light, fluorescent blue, special for:
- Flow detection of waste, rainwater and industrial water • simulation of agricultural spread.
- Search for hydraulic connection between the environment and buildings • Simulating the spread of chemical products.
- Sealing checks in industrial environments(IP standard validation inspection)
(The colorless fluorescent tracer dye are used only for some special requirements)
How to select the fluorescent color(Water soluble tracer dye)
SL3300:fluorescent green-green ; SL3400:fluorescent yellow-yellow; SL3500:fluorescent prune-Prune; SL3000: colorless fluorescent UV tracer dye-Azure
