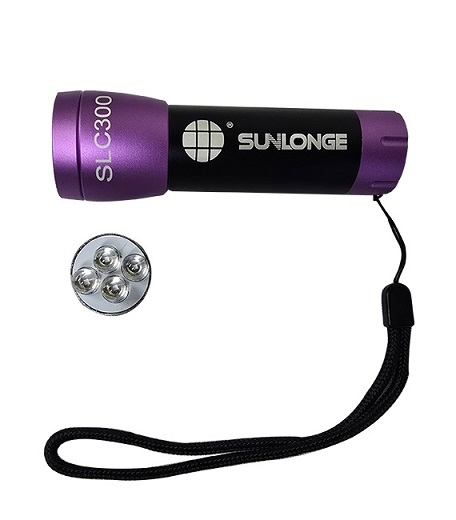

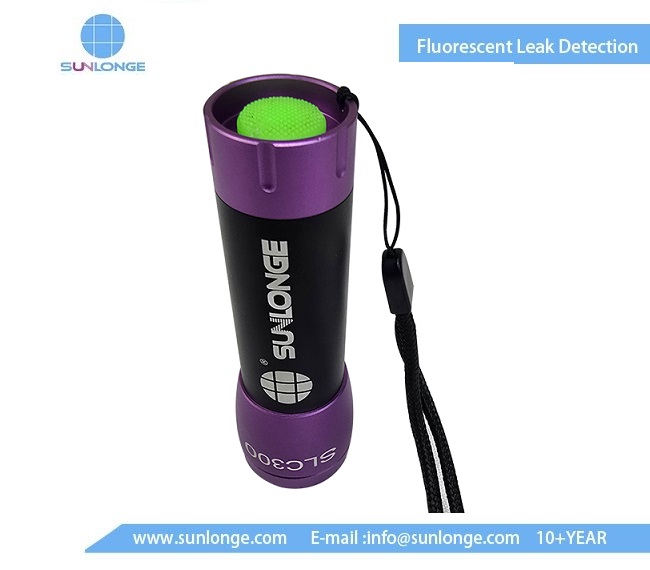

SLC300-3AAA UV LED light is equipped with 1.5W imported Japanese F8 365NM UV LED light source(405NM blue light), F8 LED, maximum output current is 150mAh, power consumption is 1.5W, with constant current driver board, integrated driver board design, it is easy for installation, ensuring the brightness of inspection lamp and product stability, while keeping low attenuation rate.Lifespan is up to 30 000H, compact lamp body design, UV intensity of SLC300 is up to 1 000 uw/cm2 at 20CM distance, so it is much stronger than lamps from our competitors. SL300 has been approved and accepted by the customers from more than 30 countries/areas. SLC300 is a powerful tool for leak detection.
SLC300 leak detection light technical parameter:
LED No: 4 pcs 1.5W 365NM F8 UV LED.
Peak wavelength: 365-370nm.
UV intensity: 1080uw/cm2 at 20CM distance (much stronger than similar light from competitors)
Beam area: Ø 160mm at 20CM distance
Power supply: 3 pcs AAA batteries.
Stability of UV intensity: > 80%
Weight: 92g w/o accessories.
Product size: 34 * 108MM
Inspection range: 2M.
SLC300 Leak detection light features:
Compact design, easy to carry;
With F8 365NM UV LED, 150mAh maximum output current, 1.5W power consumption, constant current driver board.
Integrated driver board design, easy for installation, ensuring the brightness and product stability.

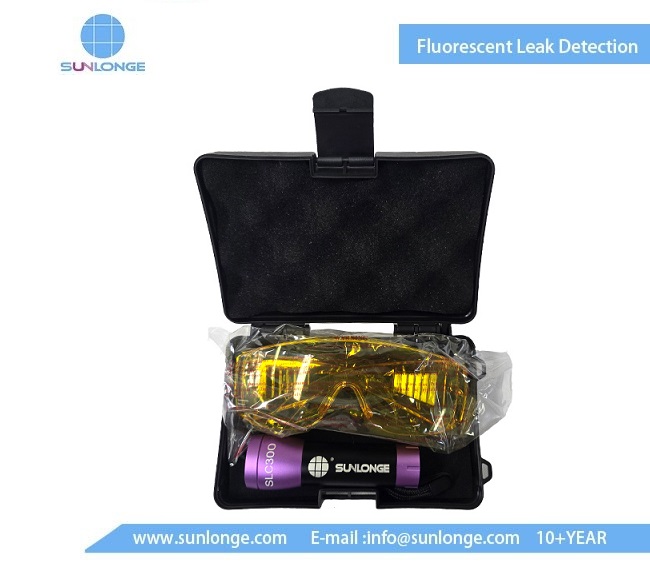

SLC 300 Leak detection light parts optional:
UV glasses, spare battery.
Note: SLC300-365NM, Abbreviated as SLC300-UV (365NM UV LED)
SLC300-405, Abbreviated as SLC300-UB (405NM UV LED)
SLC300-455, Abbreviated as SLC300-B (455NM UV LED)
The difference between F5 and F8:
1.F5 is plug-in LED with a maximum output current of 15mAh and a power consumption of only 0.1W.
2.F8 is a chip LED with a maximum output current of 150mAh and a power consumption of 1.5-2W. F8 is 10-15 times higher in power and brightness than F5.
3.F5 does not have driver board, with unstable performance; F8 has integrated driver board, ensuring products more stable.
