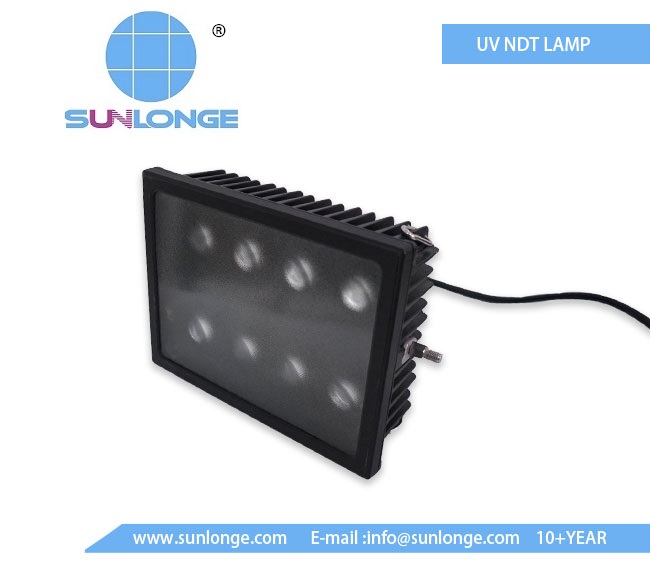

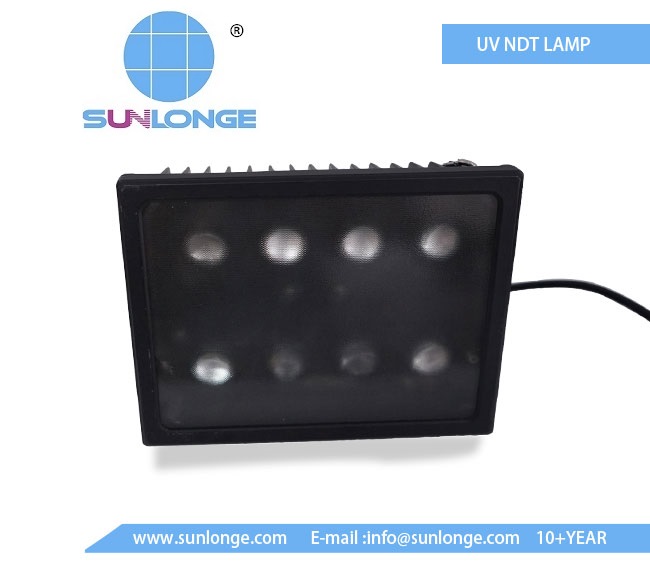

Super Universe UV LAMP Series SL8108
The Super Universe UV LAMP SL8108 is part of a new generation of products that the Sunlonge is introducing to the market.Super Universe weighs just 2.3 kgs (5.06lbs)!Product size:24*18.5*8.5CM(L * W * H)
Super size it to cover large areas – Choose from 8 -48 LEDs! Each Super Universe of 8 LEDs offering a very even beam. The user can choose to expand the covered area by connecting together up to six Super Universe UV LAMP SL8108 (48 LEDs)。Two “mother” units (four “slave” units) are required when connecting 6 units。
The Super Universe can offers an intensity of 5000 μW/cm2, 8000μW/cm2 and 13000μW/cm2 at 38 cm(We can provide different UV Intensity UV light,They can meet different customer and industry）

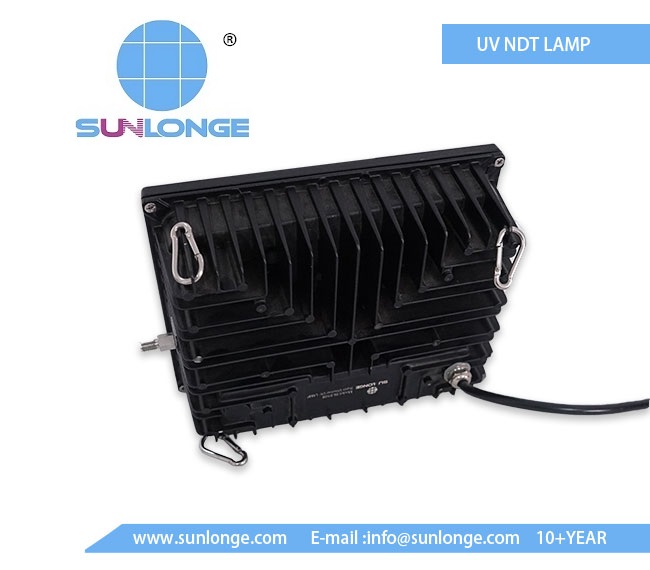

Cooling system – The heat generated from the LEDs is managed via a mechanical cooling system – no fans necessary!
The Super Universe has a manual and wireless remote control switch，Remote control – used to remotely 20 meter of the UV light。
SPECIFICATIONS:
Model: Super Universe UV LAMP SL8108
SL8108-Hight Version;SL8108-Standard Version;SL8108-Aerospace RRES90061 Abbreviation:SL8108-H;SL8108-S;SL8108-AR（The Original Model:SL8108-13K,8K,5K）
Peak-Wavelength:365-370NM;
UV Intensity: 5000μW/cm2, 8000μW/cm2 and 13000μW/cm2 at 15inch(380mm) -See the list;
Low visible light emission :less than 2 foot-candles (22 lux)
Number of UV LEDs: 8 PCS UV LED with lens, average LED life is 30,000 hours
Power supply: 100-240V AC; AC Power Code: 3 M length.
Stability of UV Intensity: > 90%
Product Size: :24*18.5*8.5CM ; WEIGHT :2.3KGS without accessories
Super Universe UV LAMP Super SL8108 Series:SL8108-5K/8K/13K(because We master the core technology,We can provide different UV Intensity UV light,They can meet different customer and industry)
|
Model |
SL8108-Aerospace RRES90061 |
SL8108-Standard Version |
SL8108-Hight Version |
|
Number of UV LEDs |
8 PCS UV LED |
The Smae |
The Same |
|
UV Intensity at 15inch(380mm) |
4000-uw/cm2 |
8000uw/cm2 |
13000uw/cm2 |
|
Visible light emission |
< 1 FC(10 lux) with white light filters Meets ASTM E3022 and RRES 90061 |
< 2 FC(20 lux) with black light filters |
No requirement |
|
Irradiated Area in 38cm Distance— (lowest intensity 1000 µW/cm2 ) |
260*240mm |
250*200mm |
200*150mm |
|
Power supply |
100-240V AC |
The Same |
The Same |
|
Switch Mode |
Manual and remote control |
The Same |
The Same |
|
Suitable for industry |
All Aeronautics NDT |
Except Aeronautics NDT |
Except Aeronautics NDT |
Attention to:SL8108-Aerospace RRES90061 Meets Rolls-Royce RRES 90061 Requirements
ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant
Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.
FEATURES:
A: The Super Universe can offers an intensity of 5000 μW/cm2, 8000μW/cm2 and 13000μW/cm2 at 38 cm(because
We master the core technology,We can provide different UV Intensity UV light,They can meet different customer and industry)
B: Cooling system – The heat generated from the LEDs is managed via a mechanical cooling system – no fans necessary!
C: The Super Universe has a manual and wireless remote control switch，Remote control – used to remotely 20 meter of the UV light
D: MODULAR DESIGN – Connect up to six Super Universe UV LAMP Super SL8108 units together.Full power is achieved instantly with the start button. The Super Universe UV LAMP Super SL8108 is 100%
free from UV-B and the LEDs emit almost no visible light due to a visible light filter. It is compliant with ASTM UV-A intensity and wavelength specifications for PT and MT
STANDARD PACKAGE INCLUDING:Super Universe UV LAMP SL8108, carry case;
OPTIONAL ACCESSORIES:Spare UV Filter Glasses ( orange or yellow); UV filter
