SL8604-395 UV LED Curing LAMP

SL8604-395 UV LED Curing LAMP

Product introduction

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923

SL8604-395 UV LED Curing LAMP Series Seriesadapts the most advanced LED cold light source technology,they uses South Korean semiconductor svc 5 Watt 395 nm

of  and  Optical lenses.The LED life is 30,000 hours.UV-A Intensity  is 20000uw/cm2  in 38cm Distance. Ergonomic design reduces the operator stress,

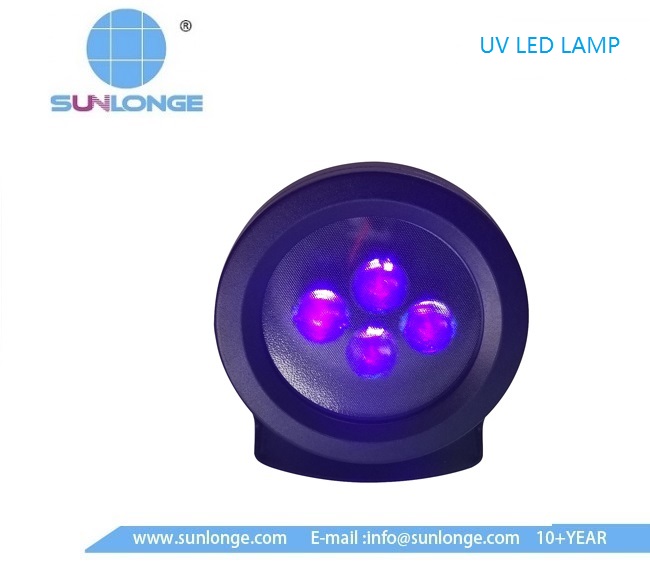

 4x SPOT 395 nm uv led with reflection  mirrow universal module design for AC and DC operation simple operation

SL8604 (5).jpg


Model: SL8604-395 UV curing LAMP


UV Intensity:200000uw/cm2 at 15inch(380mm)

Number of UV LEDs: 4 x 5W 395NM UV LED with lens, average LED life is 30,000 hours

Power supply: AC100-240V(input:AC100-240V/Output:DC 12V 1A)

Irradiated Area in 38cm Distance:150*180mm

Stability of UV Intensity: > 90%

Product Size: 128*145*78mm   ; WEIGHT :760g without  accessories

Waterproof : IP67

SL8604 (14).jpg
