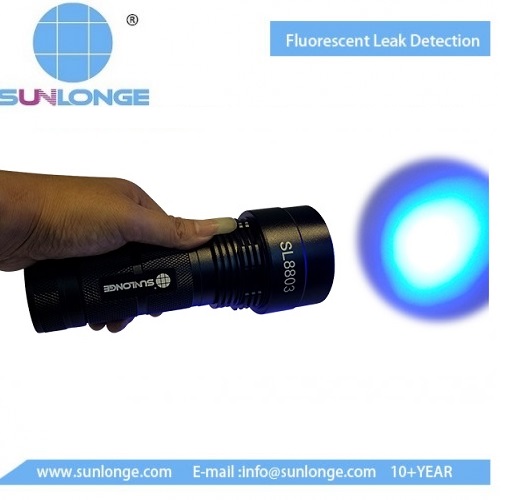

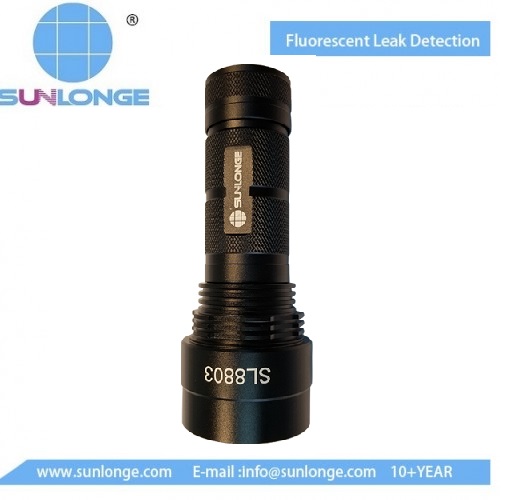

SUPER UV LED LAMP SL8803 Series

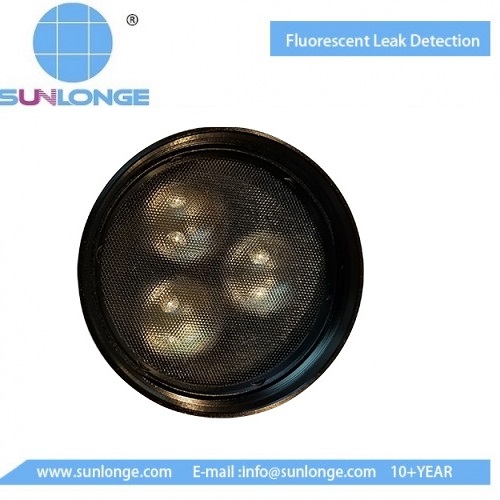

Super UV LED LAMP SL8803 Series adapts the most advanced LED cold light source technology,they uses 3PCS Nichia 5 Watt 365nm of NCSU033B(T) and Optical lenses.
Their broad-beam configuration provides an extremely wide coverage area, while a compact head design allows access into areas inaccessible to larger UV inspection lamps.
SPECIFICATIONS:
Model: SUPER UV LED LAMP SL8803 Series,;SL8803-Standard Version; Abbreviation:SL8803-S;
Peak-Wavelength:365-370NM;
Number of UV LEDs: 3 x 5W 365NM UV LED with lens, average LED life is 30,000 hours
UV Intensity:21000 UW/cm2 at 15inch(300mm) -See the list;
Power supply: 100-240 universal chargers AC/50HZ; Polymer battery pack DC.
Irradiated Area in 38cm Distance:160mm (Diameter)
Stability of UV Intensity: > 90%
Product Size: 73*193 mm ; WEIGHT :400g without accessories
|
Model |
SL8803-S |
SL8803-450NM |
|
Number of UV LEDs |
3 x 5W 365NM UV LED |
3 x 5W 455NM LED |
|
UV Intensity at 15inch(30mm) |
21000uw/cm2 |
13500LX |
|
Inspection distance |
6M |
10M |
|
Irradiated Area in 38cm Distance |
130 mm(Diameter) |
160 mm(Diameter) |
|
Power supply |
Polymer battery pack DC；3H running time for inspection lamps |
|
|
Accessory |
Tripod |
|
Features:
1.The UV intensity can reach up to 21000uw/cm2 at 30cm distance, meeting the industrial test demand.
2.Their broad-beam configuration provides an extremely wide coverage area, while a compact head design allows access into areas inaccessible to larger UV inspection lamps
3. 100% solid state cold ensures working properly in strong magnetic field.
4. We can customize the different inspection lamps according to customer demand, with our optical lens technology.
SL8803 series Lamp Abbreviation and code:
SL-8803XX
365NM ultraviolet Abbreviation–U(SL8803-Hight Version;SL8803-Standard Version;SL8803-Aerospace RRES90061 Abbreviation:SL8803-H;SL8803-S;SL8803-AR)
395NM violet Abbreviation—V;
455NM blue light Abbreviation–B; 525NM green light Abbreviation–G;
595NM amber light Abbreviation–A; 625NM red lightAbbreviation-R;
6000k white light Abbreviation–W
