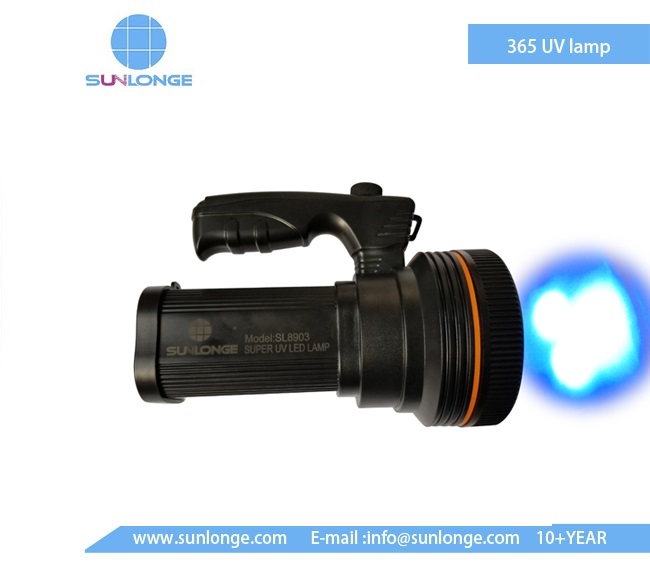

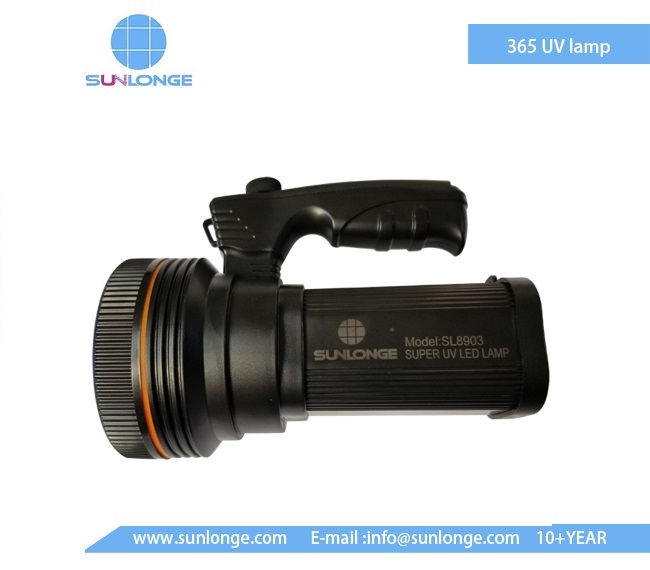

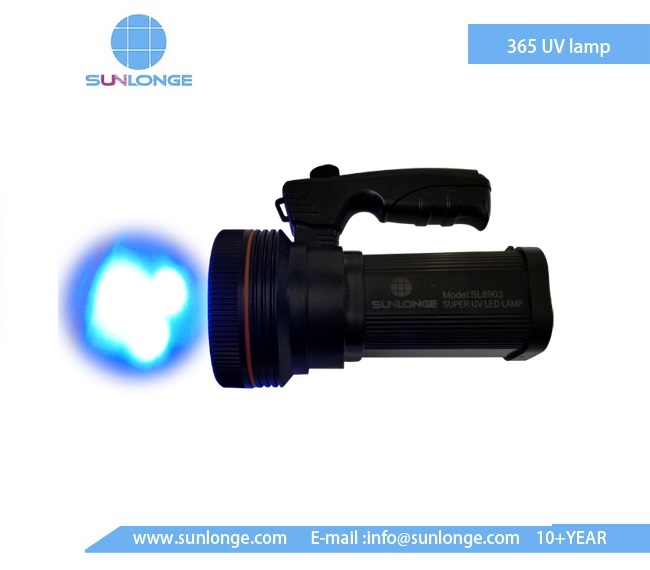

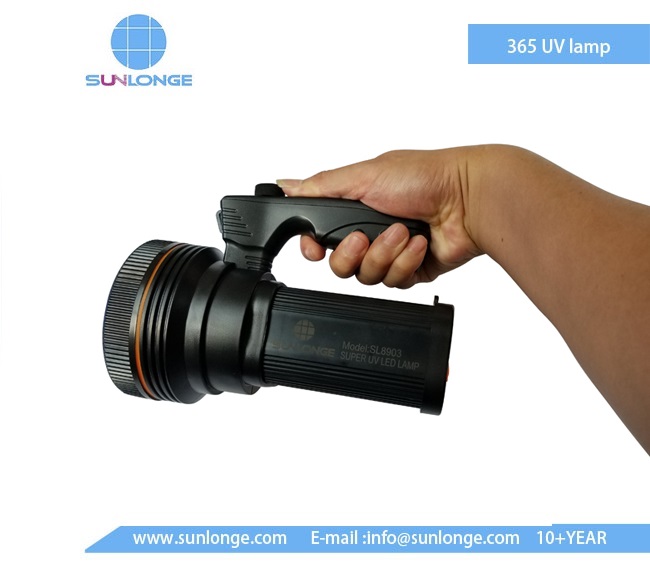

SUPER UV LED LAMP SL8903 Series

SUPER UV LED LAMP SL8903 Series

Product introduction:

Number of UV LEDs: 3 x 5W 365NM UV LED with lens, average LED life is 30,000 hours;UV Intensity:4000-13000 UW/cm2 at 15inch(380mm) -See the list;

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923
E-mail: info@sunlonge.com, sunlonge@gmail.com

SUPER UV LED LAMP SL8903 Series

      Super UV LED LAMP SL8903  Series adapts the most advanced LED cold light source technology,they uses Nichia 5 Watt 365nm of NCSU033B(T)  and  Optical lenses.

The LED life is 30,000 hours.UV-A Intensity  is 4000-13000UW/cm2  in 38cm Distance. Ergonomic design reduces the operator stress,

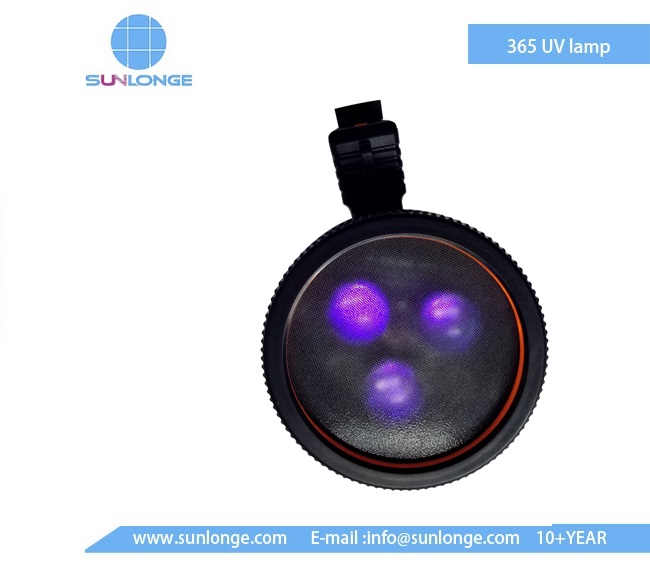

3x SPOT 365 nm uv led with reflection  mirrow  universal module design for AC and DC operation simple operation

 SPECIFICATIONS:

Model: SUPER UV LED LAMP SL8903 Series,;SL8903-Standard Version; SL8903-Aerospace RRES90061   Abbreviation:SL8903-S;SL8903-AR

Peak-Wavelength:365-370NM;

Number of UV LEDs: 3 x 5W 365NM UV LED with lens, average LED life is 30,000 hours

 UV Intensity:4000-13000 UW/cm2 at 15inch(380mm) -See the list;

Low visible light emission :less than 2 foot-candles (22 lux)

Power supply: 100-240 universal chargers  AC/50HZ; Polymer battery pack DC.

Irradiated Area in 38cm Distance:130-160mm (Diameter)

Stability of UV Intensity: > 90%

 Product Size: 196*150*98mm   ; WEIGHT :630g without  accessories

SUPER UV LED LAMP SL8903 Series

SL8903 Series:SL8903-S and SL8903-AR

(because We master the core technology,We can provide different UV Intensity UV light,They can meet different customer and industry)

Model

SL8903-S

SL8903-AR

Number of UV   LEDs

3 x 5W 365NM UV LED

UV Intensity   at 15inch(380mm)

13000uw/cm2

4000uw/cm2

Visible light   emission

Less than 2 FC

< 0.5 FC(5   lux) with   white light filters Meets   ASTM E3022 and  RRES 90061

Irradiated   Area in 38cm Distance

130   mm(Diameter)

160   mm(Diameter)

Power supply

Polymer battery   pack DC

Suitable for   industry

All Aeronautics NDT

Except Aeronautics NDT

Attention to: SL8903-Aerospace RRES90061   Meets Rolls-Royce RRES 90061 Requirements ASTM E1417,

 ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant  Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.

FEATURES:

1. 5W 365NM NICHIA True 365 nm wavelength UV light;

2.  Less than 2 FC  Candles of white Light;

3 .Instant On/Off, no warm up or cooling down time;

4. No filter or bulbs to replace; Mercury free;

5. 100% solid state cold ensures working properly in strong magnetic field.

STANDARD PACKAGE INCLUDING:

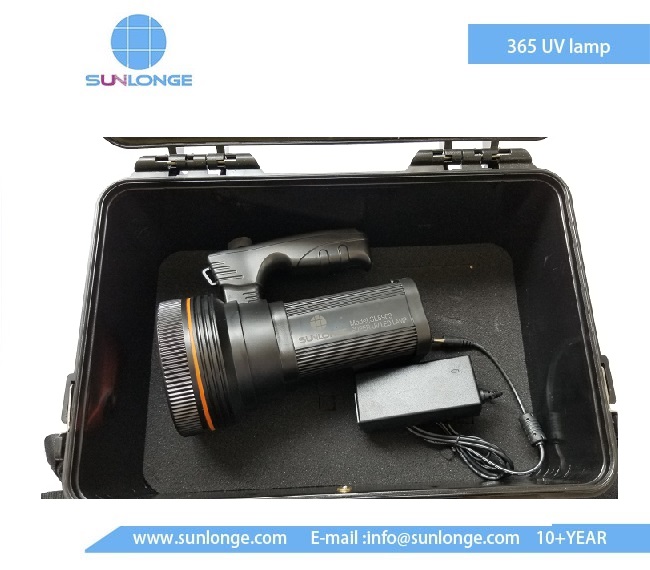

 SUPER UV LED LAMP SL8903,  carry case;

OPTIONAL ACCESSORIES:

 Spare UV Filter  Glasses ( orange or yellow); Optical lenses

SUPER UV LED LAMP SL8903 Series

 Application:

Penetration testing, fluorescence detection;Biopolymers, fluorescence observation

Refrigerant leak detection;Engine oil leak detection

Criminal Investigation: fingerprints, blood observed

Fluorescence observation of ore;Detection of oil cleaning

 Main purposes:

 Fluorescence detection: iron and steel, non-ferrous metals, automobiles, aircraft, fluorescent penetrant inspection, fluorescent magnetic particle inspection

 Pollution check: electronic components, boards, dust inspection, LCD panel, checked into the clean room

 Leak Check: hydraulic machines, sump, pipe and other oil spill inspection, leak detection using fluorescent agents

 Degreasing cleaning validation: the food industry, kitchen, cooking utensils, tableware degreasing cleaning
