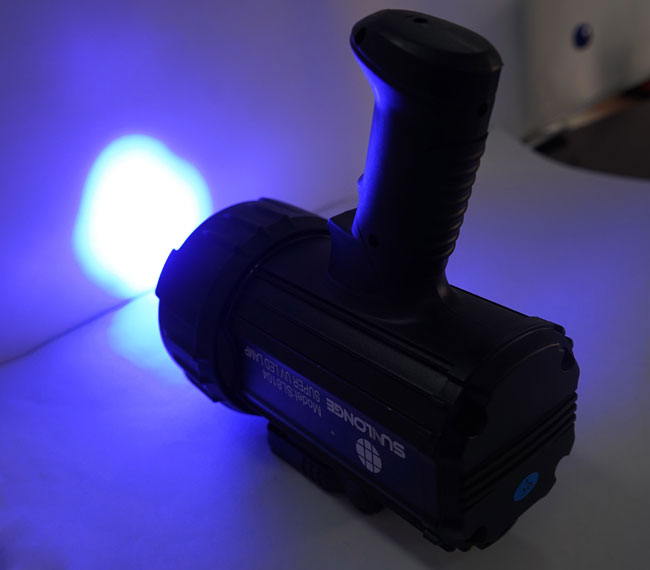

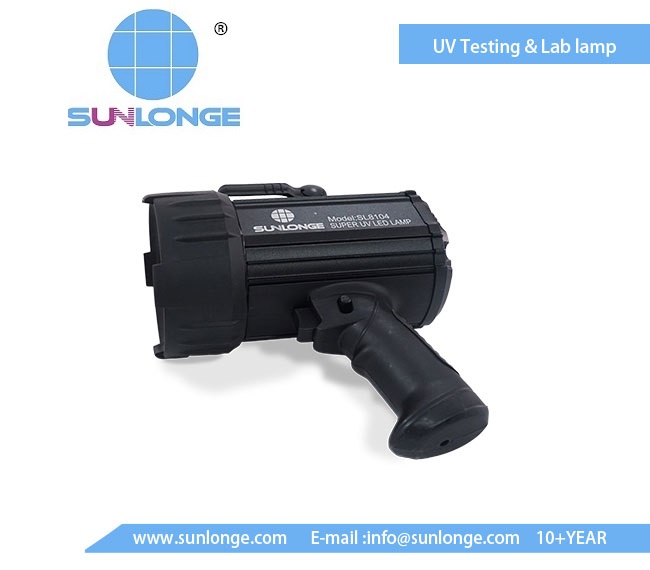

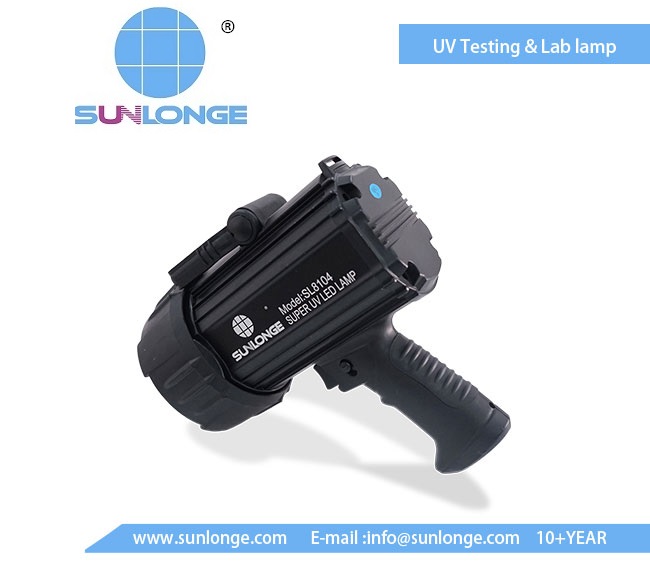

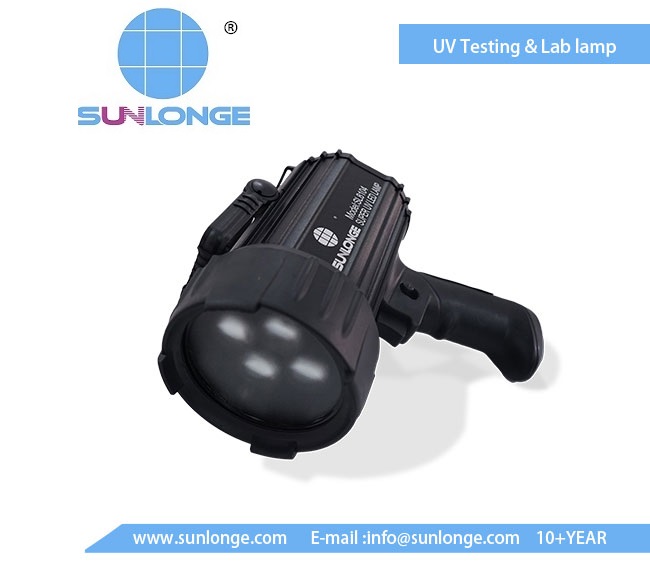

SUPER UV LED LAMP SL8104

SUPER UV LED LAMP SL8104

Product introduction

SUPER UV LED LAMP SL8104

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923
E-mail: info@sunlonge.com, sunlonge@gmail.com

SUPER UV LED LAMP SL8104

Super UV LED LAMP SL8104 Series adapts the most advanced LED cold light source technology,they uses Nichia 5 Watt 365nm of NCSU033B(T)  and  Optical lenses.The LED life is 30,000 hours.

UV-A Intensity  is 15000UW/cm2  in 38cm Distance. Ergonomic design reduces the operator stress, 4x SPOT 365 nm uv led with reflection  mirrow universal module design for AC and DC operation simple operation

SPECIFICATIONS:

Model: SUPER UV LED LAMP SL8104 Series;SL8104-Hight Version;SL8104-Standard Version;SL8104-Aerospace RRES90061 Abbreviation:SL8104-H;SL8104-S;SL8104-AR

(The Original Model:SL8104-21K,13K,5K)

Peak-Wavelength:365-370NM;

UV Intensity:4000-21000UW/cm2 at 15inch(380mm) -See the list;

Low visible light emission :less than 2 foot-candles (22 lux)

Number of UV LEDs: 4 x 5W 365NM UV LED with lens, average LED life is 30,000 hours

Power supply: 100-240 universal chargers  AC/50HZ; Polymer battery pack DC.

Irradiated Area in 38cm Distance:150*180mm

Stability of UV Intensity: > 90%

Product Size: 220*210*110mm   ; WEIGHT :980g without  accessories

SL8104-L20 (5).jpg

SL8104 Series:SL8104-Hight Version;SL8104-Standard Version;SL8104-Aerospace RRES90061 Abbreviation:SL8104-H;SL8104-S;SL8104-AR(The Original Model:SL8104-21K,13K,5K)

(We master the core technology, We can adjust the intensity of the UV according to customer requirements requirements)



Model

SL8104-Aerospace RRES90061

SL8104-Standard Version

SL8104-Hight Version

Number of UV LEDs

4 x 5W 365NM UV LED

The  Smae

The Same

UV Intensity at 15inch(380mm)



4000-5000uw/cm2



13000uw/cm2



21000uw/cm2



Visible light emission

< 0.5 FC(5 lux)
 with white light filters Meets ASTM E3022 and  RRES 90061



< 2 FC(20 lux)

 with black light filters



< 2 FC(20 lux)

 with black light filters

Irradiated Area in 38cm Distance



180*260mm



130*180mm



120*160mm

Power supply

Polymer battery pack DC



The Same



The Same

Suitable for industry

All Aeronautics NDT

Except Aeronautics NDT

Except Aeronautics NDT

Attention to SL8104-Aerospace RRES90061   Meets Rolls-Royce RRES 90061 Requirements

ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant

Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.



FEATURES:

1. 5W 365NM NICHIA True 365 nm wavelength UV light;

2. Less than 2 FC  Candles of white Light;

3.Instant On/Off, no warm up or cooling down time;

4. No filter or bulbs to replace; Mercury free;

5. 100% solid state cold ensures working properly in strong magnetic field.

STANDARD PACKAGE INCLUDING:

SUPER UV LED LAMP SL8104, Charger, carry case;

OPTIONAL ACCESSORIES:

Spare UV Filter  Glasses ( orange or yellow); Optical lenses ABS protection case with form inside

Application:

Penetration testing, fluorescence detection;Biopolymers, fluorescence observation

Refrigerant leak detection;Engine oil leak detection

Criminal Investigation: fingerprints, blood observed

Fluorescence observation of ore;Detection of oil cleaning
