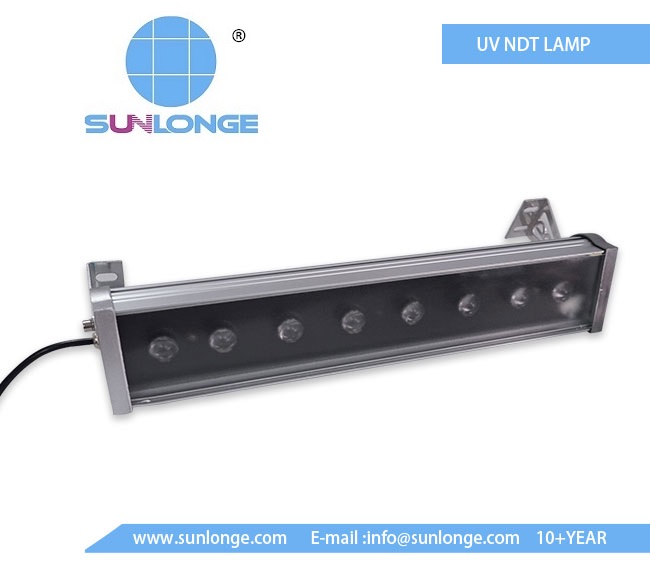

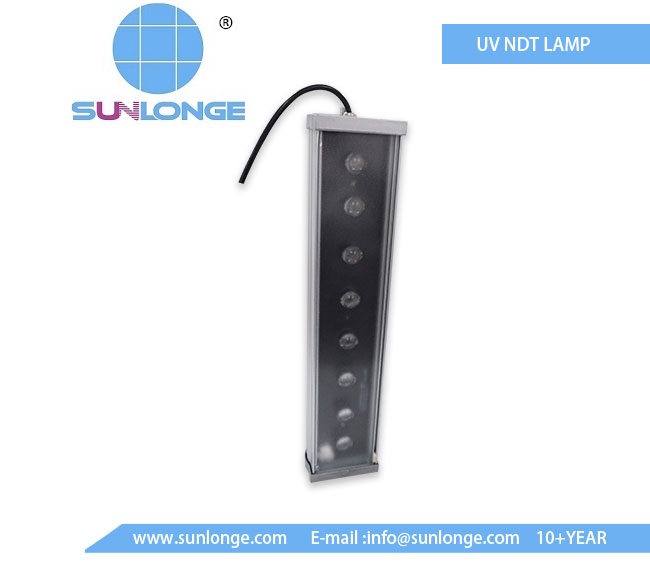

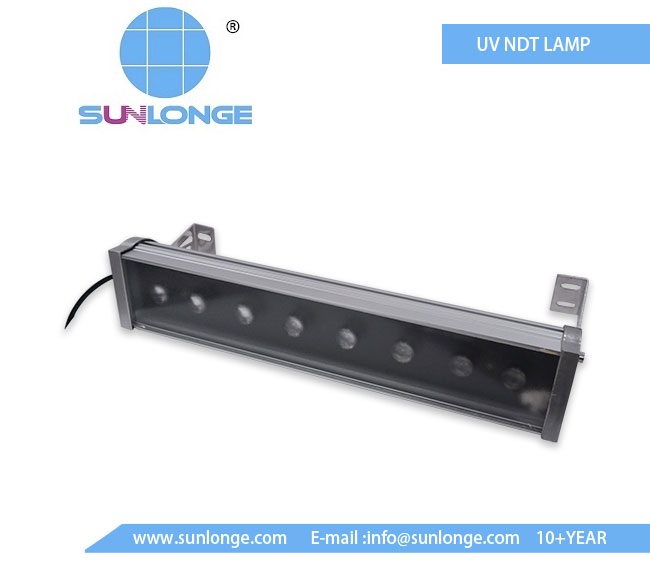

SL-8208 Super Sky UV LAMP Series
The SL-8208 Super Sky UV LAMP Series is part of The new UV NDT LAMP of products that the Sunlonge is introducing to the market. Super sky weighs just 2.5 kgs (5.06lbs)!Product size:50*9*10CM(L * W * H)
Super size it to cover large areas ,Use Dimmer:The UV light can be dimmed down up to 20% of its 100% capacity。
The Super Sky can offers an intensity of 5000 μW/cm2, 8000μW/cm2(We can provide different UV Intensity UV light,They can meet different customer and industry）
Cooling system – The heat generated from the LEDs is managed via a mechanical cooling system – no fans necessary!
The Super Sky SL8208 has a manual and wireless remote control switch，Remote control – used to remotely 10 meter of the UV light。
SPECIFICATIONS:
Model: Super Sky UV LAMP SL8208 Series
SL8208-Hight Version;SL8208-Aerospace RRES90061 Abbreviation:SL8208-H;SL8108-AR（The Original Model:SL8208-8K,5K）
Peak-Wavelength:365-370NM;
UV Intensity: 5000μW/cm2, 8000μW/cm2 at 38 cm(can be dimmed down up to 20% of its 100% capacity) -See the list;Low visible light emission :less than 2 foot-candles (22 lux)

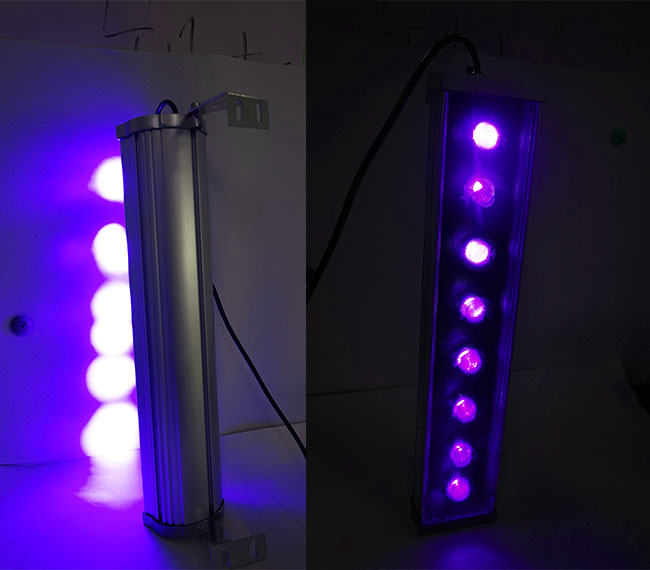

Number of UV LEDs: 8 PCS UV LED with lens, average LED life is 30,000 hours
Power supply: 100-240V AC; AC Power Code: 3 M length.
Stability of UV Intensity: > 90%
Product Size: :50*9*10CM ; WEIGHT :2.5KGS without accessories
Super Sky UV LAMP Super SL8208 Series:SL8208-Hight Version;SL8208-Aerospace RRES90061 Abbreviation:SL8208-H;SL8108-AR（The Original Model:SL8208-8K,5K） (Because we master the core technology,We can provide different UV Intensity UV light,They can meet different customer and industry)
industry)
|
Model |
SL8208-Aerospace RRES90061 |
SL8208-Hight Version |
|
Number of UV LEDs |
8 PCS UV LED |
The Smae |
|
UV Intensity at 15inch(380mm) |
4000-5000uw/cm2 |
8000-10000uw/cm2 |
|
Visible light emission |
< 1 FC(10 lux) with white light filters Meets ASTM E3022 and RRES 90061 |
NO requirement |
|
Irradiated Area in 38cm Distance— (lowest intensity 1000 µW/cm2 ) |
580*180mm |
550*120mm |
|
Power supply |
100-240V AC |
The Same |
|
Switch Mode |
Manual and remote control |
The Same |
|
Suitable for industry |
All Aeronautics NDT |
Except Aeronautics NDT |
Attention to:SL8208-Aerospace RRES90061
Meets Rolls-Royce RRES 90061 Requirements
ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant
Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.
FEATURES:
A: The Super Sky sl8208 can offers an intensity of 5000 μW/cm2 and 8000μW/cm2 at 38 cm(Because We master the core technology,We can provide different UV Intensity UV light,They can meet different customer and industry)
B: Cooling system – The heat generated from the LEDs is managed via a mechanical cooling system – no fans necessary!
C: The Super Sky has a manual and wireless remote control switch，Remote control – used to remotely 10 meter of the UV light
D: The Super Sky UV LAMP Super SL8108 is 100% free from UV-B and the LEDs emit almost no visible light due to a visible light filter. It is compliant with ASTM UV-A intensity and wavelength specifications for PT and MT
STANDARD PACKAGE INCLUDING:Super Sky UV LAMP SL8208, carry case;
OPTIONAL ACCESSORIES:Spare UV Filter Glasses ( orange or yellow); UV filter
