Product introduction:

The Vulcan UV LED LAMP SL8004 Series,

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923
E-mail: info@sunlonge.com, sunlonge@gmail.com

The Vulcan UV LED LAMP SL8004 Series

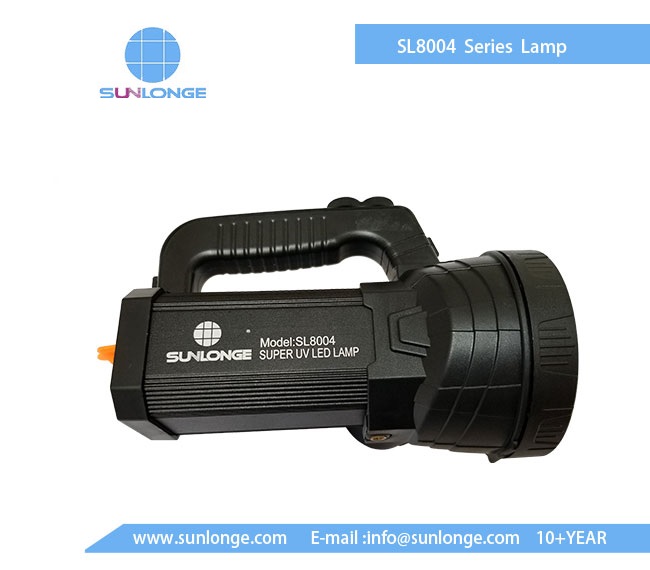

    The Vulcan  UV LED LAMP SL8004 Series is the portable NDT inspection lamp with white light and UV light emissions as per to ASTM E 3022 and Rolls-Royce RRES 90061 Requirements;The Vulture SL8004  Series of inspection uv ndt lamp have been specifically designed to meet various industry standards. The beam profile of the UV Light is extremely homogeneous without any footprints showing from the LED’s shades, dark spots or other disturbing defects; The Vulcan  SL8004  Series  feature 4 powerful UV-A (365 nm) LEDs plus 6  convenient white light LED

 The Vulcan UV LED LAMP SL8004 Series

 SPECIFICATIONS:

Model:The Vulcan  UV LED LAMP SL8004 Series;SL8004-Hight Version;SL8004-Standard Version;SL8004-Aerospace RRES90061 Abbreviation:SL8004-H;SL8004-S;SL8004-AR

Peak-Wavelength:365-370NM;

UV Intensity:4000-21000uw/cm2 at 15inch(380mm) -See the list;

Low visible light emission :less than 2 foot-candles (22 lux)

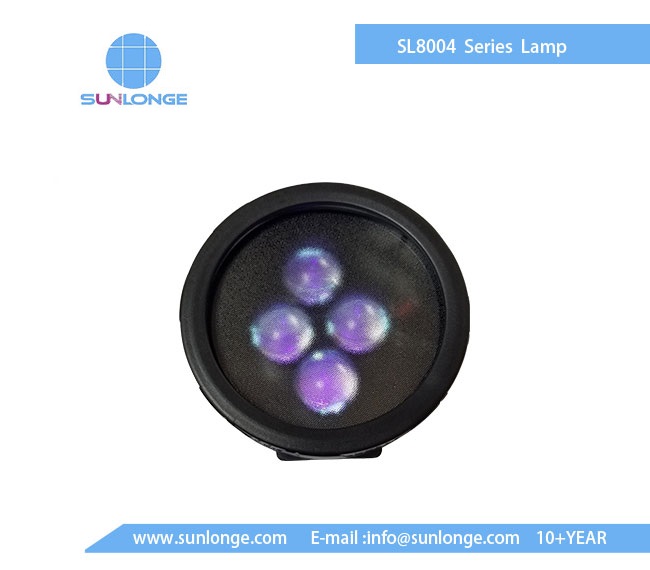

Number of UV LEDs: 4 x 5W 365NM UV LED with lens,  6 White Light LED,average LED life is 30,000 hours

Power supply: 100-240 universal chargers  AC/50HZ; Polymer battery pack DC.

Irradiated Area in 38cm Distance:150*180mm

Stability of UV Intensity: > 90%

Product Size: 150*200*106 mm   ; Weight :660g without  accessories;

The Vulcan UV LED LAMP SL8004 Series

 Model:The Vulcan UV LED LAMP SL8004 Series;SL8004-Hight Version;SL8004-Standard Version;SL8004-Aerospace RRES90061

Abbreviation:SL8004-H;SL8004-S;SL8004-AR

(We master the core technology, We can adjust the intensity of the UV according to customer requirements requirements)

Model

SL8004-Aerospace RRES90061

SL8004-Standard Version

SL8004-Hight Version

Number of UV LEDs

4 x 5W 365NM   UV LED

White of LEDS

6   White Light LED(The side light)

UV Intensity at 15inch(380mm)

4000-5000uw/cm2

13000uw/cm2

21000uw/cm2

Visible light emission

< 0.5 FC(5 lux)

 with   white light filters Meets ASTM E3022 and  RRES 90061

< 2 FC(20 lux)

 with black light filters

< 2 FC(20 lux)

 with black light filters

Irradiated Area in 38cm Distance

186*260mm

136*180mm

126*160mm

Power supply

Polymer battery pack DC

The Same

The Same

Suitable for industry

All Aeronautics NDT

Except Aeronautics NDT

Except Aeronautics NDT

  Attention to Attention to SL8004-Aerospace RRES90061   Meets Rolls-Royce RRES 90061 Requirements ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant  Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.

The Vulcan UV LED LAMP SL8004 Series

 Features

 100% solid state circuit ensures working properly in strong magnetic field

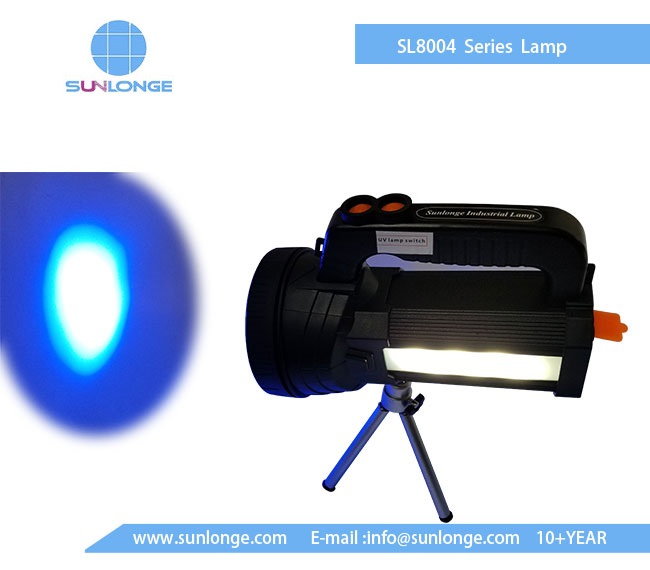

 UV light and White light  can be used simultaneously, they use 2 separate switches

 Safe and pure UV-A content with no UV-B and UV-C,almost no visible light.

 The SL8004-AR  ndt lamp is less than 5000μW/cm2 at 380mm.

 Extremely large coverage area of up to 260mm, with a minimum UV-A intensity of 1,000 μW/cm2

 Unique mechanical cooling system keeps LEDs cool to maintain optimum light output during extended use.

 Each LED is with long expected lifespan of 30,000 hours.

 The start button provide instant power and the light  use 2 separate switches -on the pistol handle for ease of use.

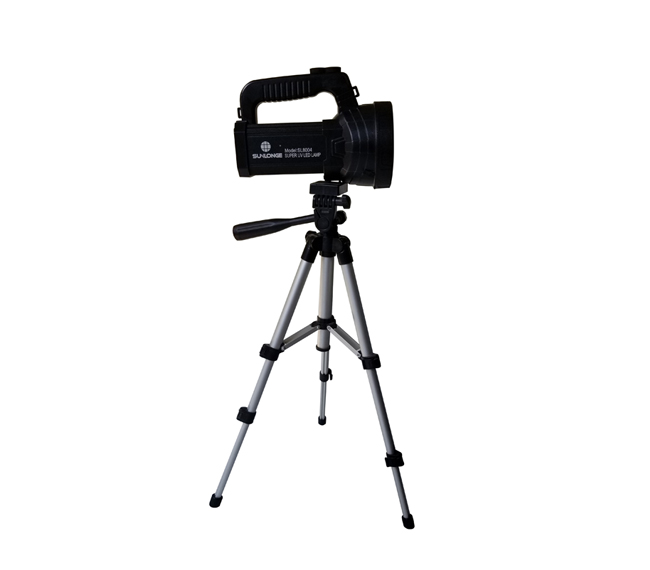

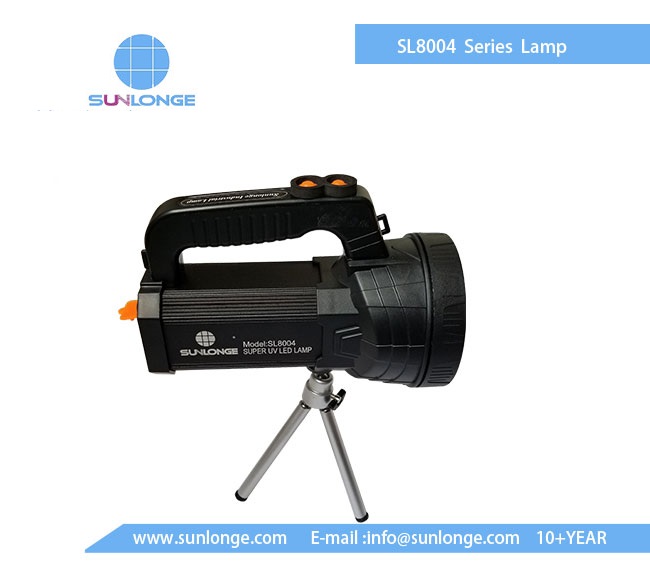

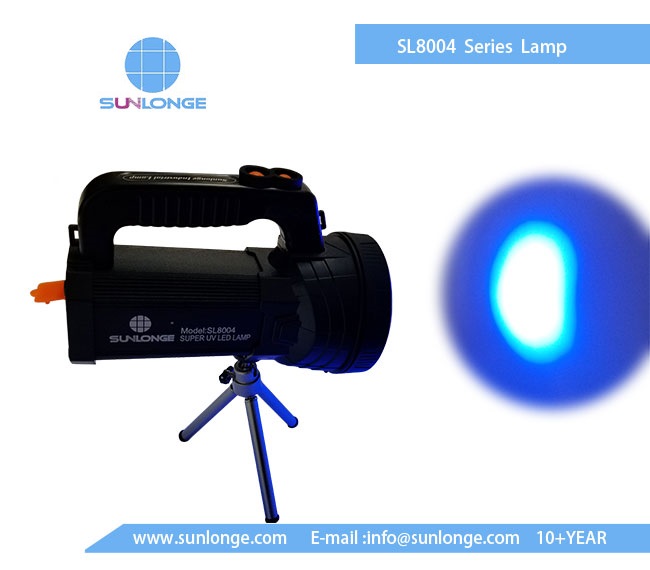

 The UV NDT LAMP can use the  tripod for easy operation and use in different situations

 Meet Wavelength specifications for FPI and MPI. IP54 approved for water spray and external bodies.

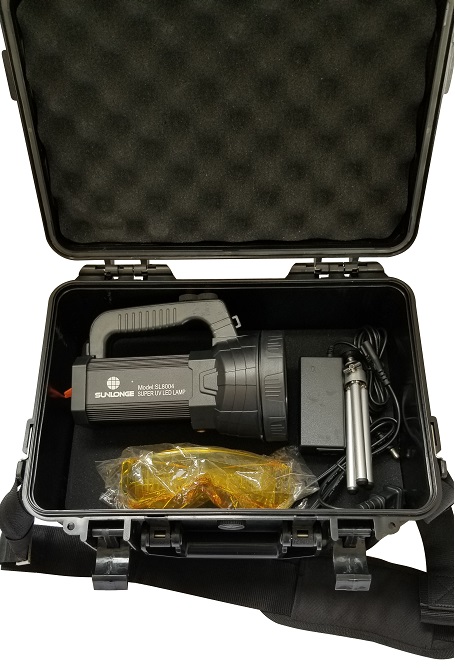

 STANDARD PACKAGE INCLUDING:

 SUPER UV LED LAMP SL8004, Charger, The Waterproof toolkit

 OPTIONAL ACCESSORIES:

 Spare UV Filter  Glasses ( orange or yellow); the  tripod

The Vulcan UV LED LAMP SL8004 Series

 Application:

  Penetration testing, fluorescence detection;Biopolymers, fluorescence observation

 Refrigerant leak detection;Engine oil leak detection

 Criminal Investigation: fingerprints, blood observed

 Fluorescence observation of ore;Detection of oil cleaning
