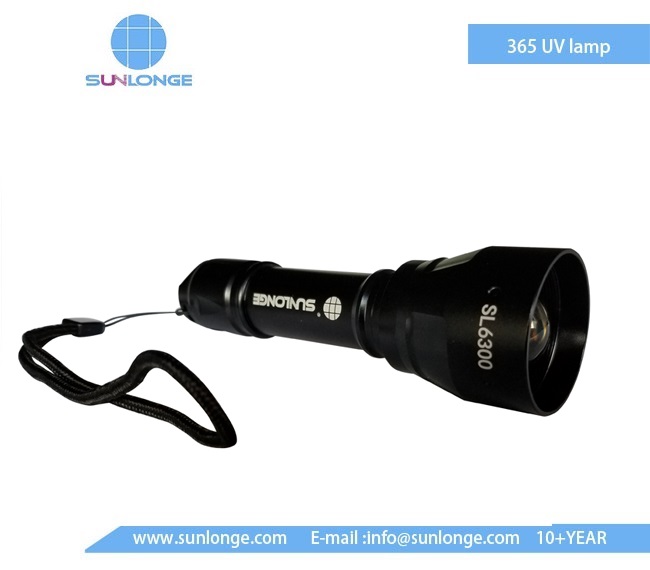

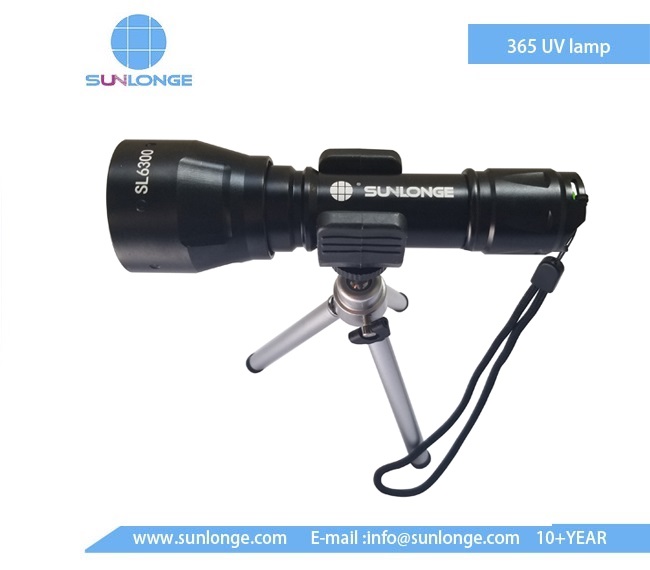

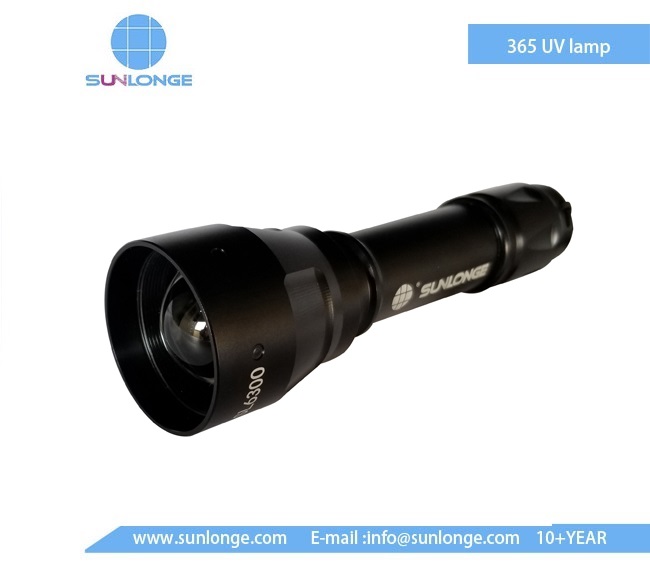

SL6300-UV adjustable-light beam UV LED Flashlight
UV Leak Detection Flashlight UV Leak Detection Flashlight UV Leak Detection Flashlight UV Leak Detection Flashlight

SL6300-UV adjustable-light beam UV LED Flashlight

Product introduction

The SL6300-UV adjustable-light beam UV LED Flashlight,UV LED NDT LAMP

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923
E-mail: info@sunlonge.com, sunlonge@gmail.com

SL6300  Adjustable UV Leak Detection Flashlight

SPECIFICATIONS:

Model: Super The  SL6300-UV adjustable-light beam UV LED Flashlight  (Abbreviation The viper SL6300-H)

 Peak-Wavelength:365-370NM;

 UV Intensity: 4000-35000uw/cm2 at 15inch

 Number of UV LEDs: 1 x 5W 365NM UV LED with lens, average LED life is 30,000 hours

 Power supply: 3.7V 2200 Mah  18650  lithium battery;

 Operating Time: 2.5 hours (continuous)

 Irradiated  Area in 38cm Distance:  Ø 30-100mm-See the list.

 Stability of UV Intensity: > 85%

 Product Size: 150*44mm  ;  WEIGHT :160 g without  accessories

SL6300 Series: SL6300–Standard Version;SL6300-Aerospace RRES90061;
AbbreviationSL6300-S;SL6300-AR (We master the core technology, We can adjust the UV intensity  according to customer requirements)

Model

SL6300-Aerospace RRES90061

SL6300-Standard Version

Number of UV LEDs

1 x 5W 365NM UV LED,Optical lens + filter

1 x 5W 365NM UV LED,Optical lens + filter

UV Intensity at 15inch(380mm)

3500/cm2

35000uw/cm2

Visible light emission

< 0.5 FC(5 lux)
 with white light filters Meets ASTM E3022 and  RRES 90061

< 2 FC(20 lux)

 with black light filters

Irradiated Area in 38cm Distance

50-100mm(Diameter)

100mm(Diameter)

Power supply

Polymer battery pack DC

The Same

Suitable for industry

All Aeronautics NDT

Except Aeronautics NDT

Attention to:

SL6300-Aerospace RRES90061   Meets Rolls-Royce RRES 90061 Requirements,ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant

SL6300 Adjustable UV flashlight  FEATURES:

 1.A New Palm-Sized,  Hands Free Light Source!Ideal for fluorescent magnetic particle and penetrant testing, mining inspection and a variety of other specialized applications;

 2.Adjustable UV Headlamp  feature a powerful UV-A (365 nm) LED light designed to free the user’s hands during an inspection;

 3.The lamps  use the equipped with a constant current driver that keeps the UV intensity constant even when the battery fades;

 4.the headlamp  Zoom in/Out by adjusting the front the head: The whole light beam is 20 to 100mm, It can meet the needs of different customers.From your lens you can ajust the focal length

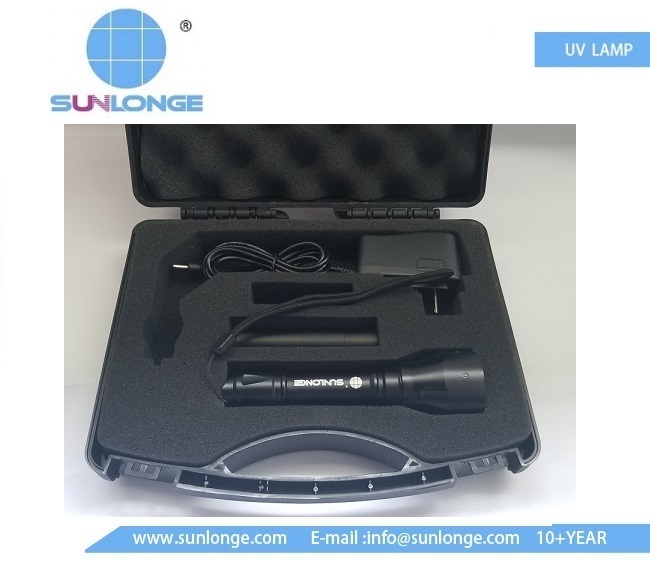

STANDARD PACKAGE INCLUDING:

 Adjustable UV Leak Detection Flashlight SL6300, Charger, carry case;
