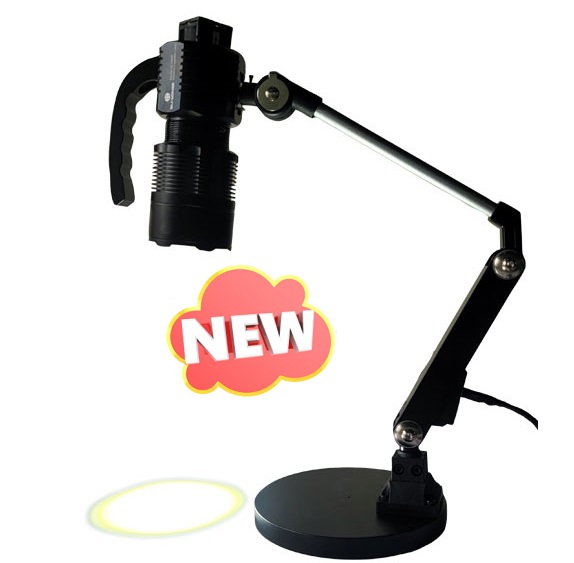

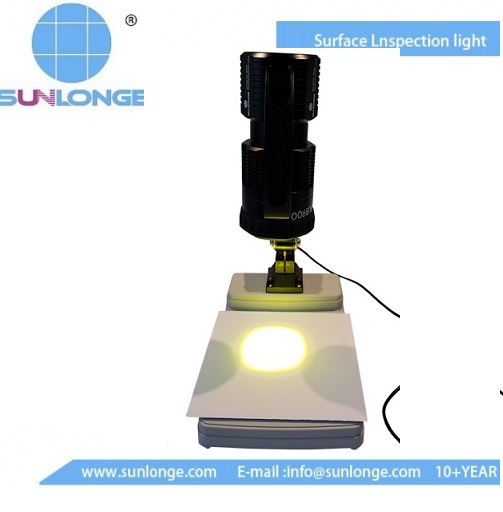

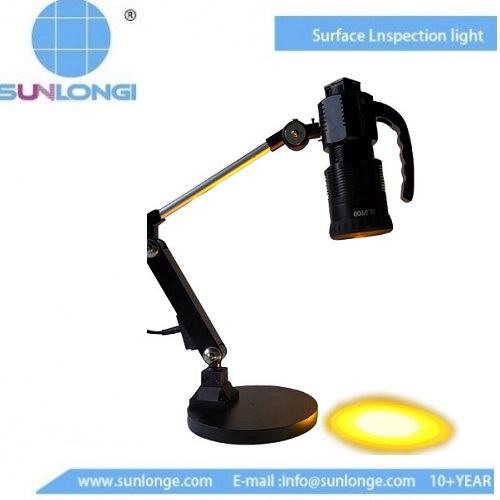

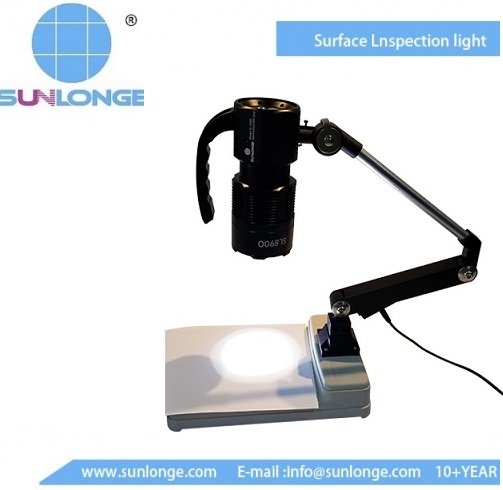

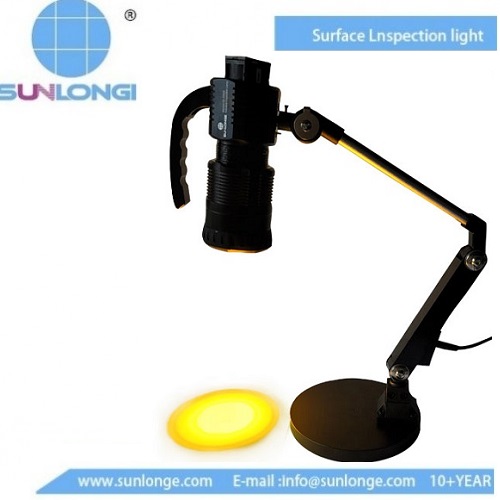

Desktop wafer inspection lamp, High illuminance LED inspection lamp. Wafer dust particle defect inspection lamp: High illuminance LED surface inspection lamp. LCD screen surface inspection lamp.
SL8900 series are with yellow green light source inspection lamp(white light optional). The principle: The LED source will emit special wavelength light source through the refraction of optical lens. With the light on the surface of sample, the inspector can detect the dust, scratches, glitch, ink etc. It can take the place of traditional lighting device and optical system machine. The inspector can detect the defect and flaws directly of test sample by the light source and human eyes. It can help greatly save the purchase cost. The SL8900 is with 510-590NM light source, which is sensitive to human vision, with the green and yellow compound light source. The illuminance can reach up to 400 000lx, meanwhile the lifespan can reach up to 30 000H. It can detect the dust particles in the 1um size range, which is 10 time powerful than the traditional inspection lamp.
SPECIFICATIONS：
Model: SL8900-GY high illuminance LED inspection lamp. Wafer dust particle defect inspection lamps. Wafer surface inspection lamp.
Light source: 1PCS 30W imported LED with customized optical lens. Average 30 000H lifespan.
light Intensity: 280 000 lux at 40CM distance; 400 000 lux at 30CM distance. (we master the core technology. We can offer different parallel lights to meet various demand.)
Irradiated area: Φ90~~200MM at 40CM distance(Dimming to adjust the area )
Dimming: infinite dimming, from 0% ~100%. Consumption: 30W.
Power supply: AC100-240V(input:AC100-240V/Output:DC 12V 2A) 24H continuous operation.
Stability of Led Lamp: > 90%
Product Size: 86*200MM. Net weight: 1.18Kg without accessory.
Size: 86*200MM. Net weight: 1.18Kg without accessory.
|
Model |
SL8900-W white light wafer inspection lamp |
SL8900-GY green yellow wafer inspection lamp |
Remark |
|
LED NO and specification |
1 pcs imported 30W 6000K LED with customized optical and filter system. |
We can customize The lamp according to your demand. |
|
|
6000K white light or 510-590NM green yellow light (365NM;455NM;595NM;625NM optional) |
|||
|
Wavelength |
6000K white light |
510-590NM green yellow light |
|
|
Illuminance |
280000LX→at 40cm distance； 400000万LX→at 30cm distance；
|
290000LX→at 40cm distance 400000LX→at 30cm distance； |
|
|
We master the core technology. We can offer different illuminance inspection lamps to meet different demand. |
|||
|
Irradiated area |
Ø 9- 20cm at 40cm distance |
||
|
Dimming |
Infinite dimming, 0%~~100% by the modulator. Dimming the light to zoom in or out. |
||
|
lifespan |
30000H |
||
|
Size and weight |
86*200MM, Weight: 1.18Kg without accessories. |
||
|
accessory |
protective glassed |
||
Feature:
1. 1 pcs high power LED, cold light source, 400 000 lx high illuminance, compatible with 200W mercury-vapor light.
2. Lifespan up to 30 000H, 10 time longer than the mercury-vapor light.
3.The illuminance stability can be up to 90% with customized optical and filter system. Perform better than the lamps of Japanese and Germany lamps.
4. White light or green yellow light, sensitive but do not to harm the human vision. Detect the scratches and dust particles at the 10um size range.
5.Mechanical cooling. Provide stable and high illuminance special wavelength light source.
6.You can choose different wavelength light source (365NM,455NM,525NM,595NM,625NM,6000K optional)
White light: effective for scratches, uniform coating of different levels, or contamination.
Green light: effective for slight scratches, dust particles on LCD screen. 70% of defect can be detected.
Yellow light: effective for micro engraving mold, semiconductor, wafer and coating.
Application:
LCD screen, micro engraving mold, semiconductor, wafer, sapphire
SL-8900XX SL8900 series Lamp Abbreviation and code:
365NM ultraviolet Abbreviation–U 395NM violet Abbreviation—V
455NM blue light Abbreviation–B 525NM green light Abbreviation–G
595NM amber light Abbreviation–A 625NM red light Abbreviation-R
6000k white light Abbreviation–W 510-590NM green yellow light abbreviation-GY
SL8900BL: DC model with lithium battery pack (contact us for further information)
