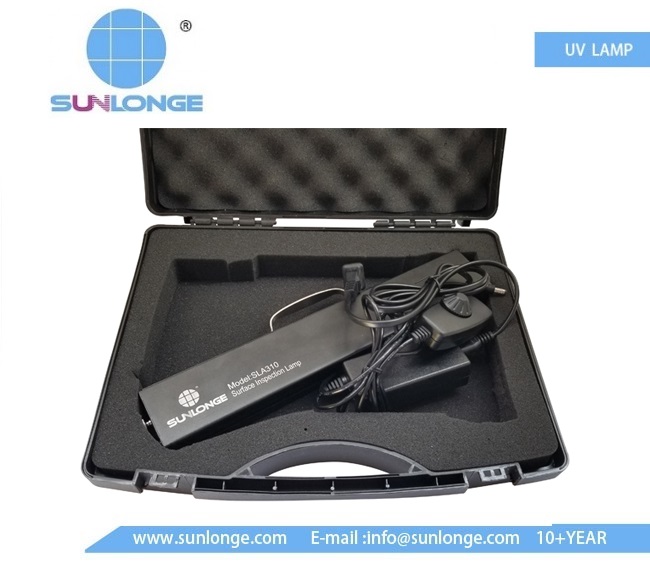

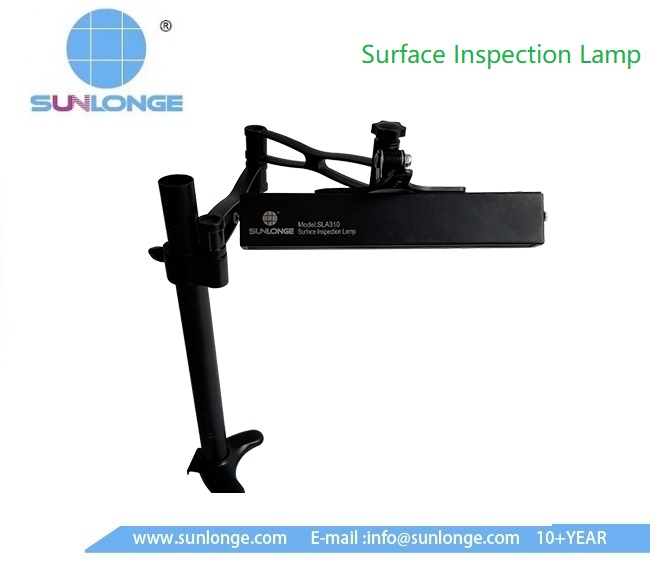

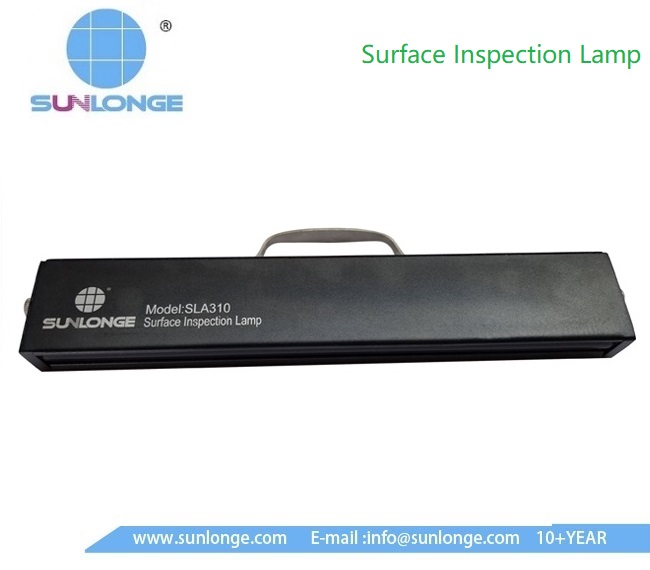

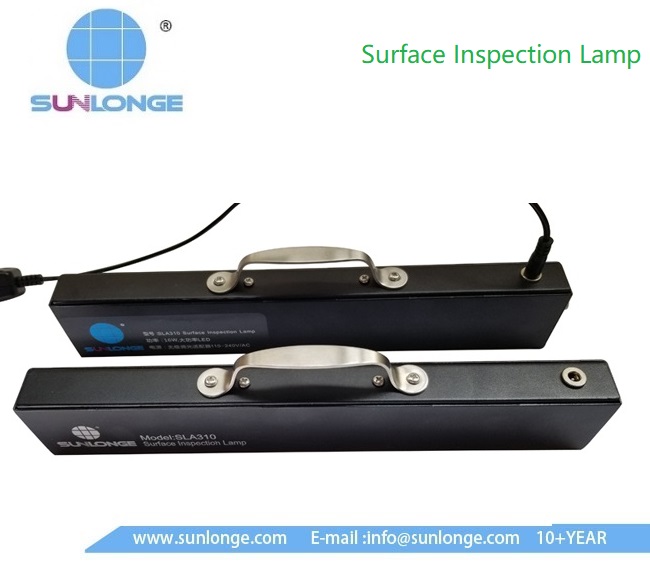

SLA310-G Green surface inspection Lamp

SLA310-G Green surface inspection Lamp，Wafer Inspection Lamp

SPECIFICATIONS:

Model:SLA310-G Green surface inspection Lamp

1. Anodized high strength aluminum alloy, very durable

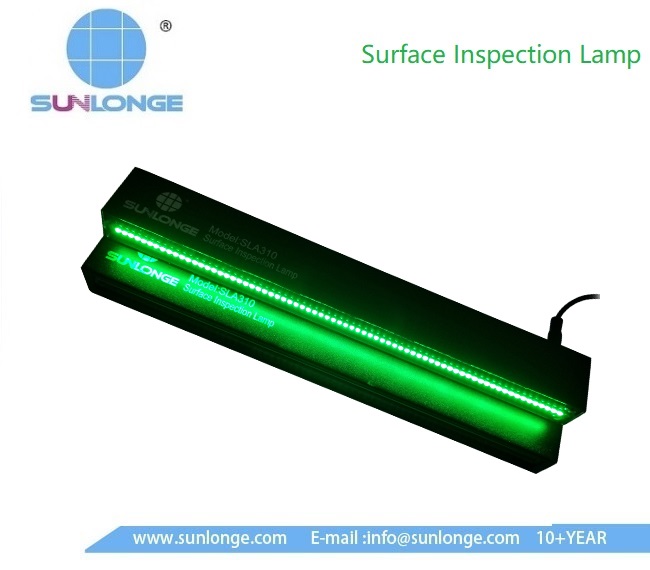

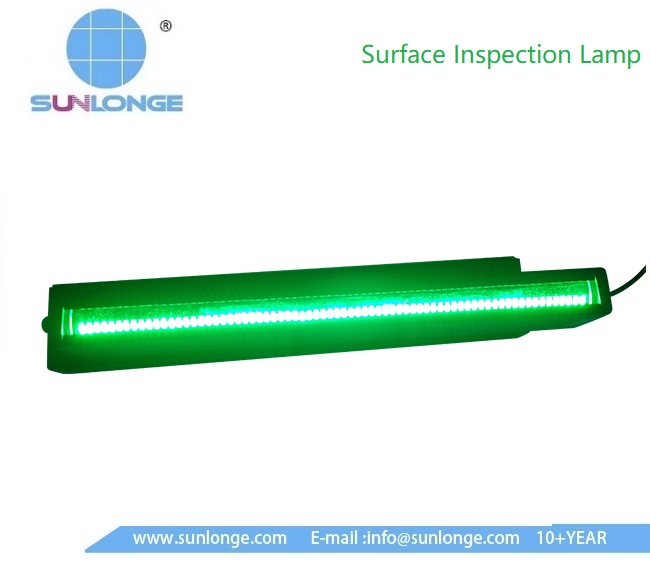

2.Use 72  pcs 0.5W 525 NM LED with lens and white side light, average LED life is 30,000 hours

3.light  Intensity:15000 lx  at 30cm

4.Irradiated Area in 30cm Distance:700*180mm

5.Power supply: AC100-240V(input:AC100-240V/Output:DC 12V 1A)

7:Stability of Led Lamp: > 90%

8:Product Size:310*56*30 mm   ; Weight :880g  without accessories

SLA310-G Green Wafer Inspection Lamp

Applications：

Quality inspection of TFT-LCD panel.

Quality inspection of color filters,touch panel

Quality inspection of Cell Gap MURA

Inspection of  film thinkness

Examination of surface flathess

Examination of optical film materials

urface evenness and  bubble inspection of polarizer attching.
