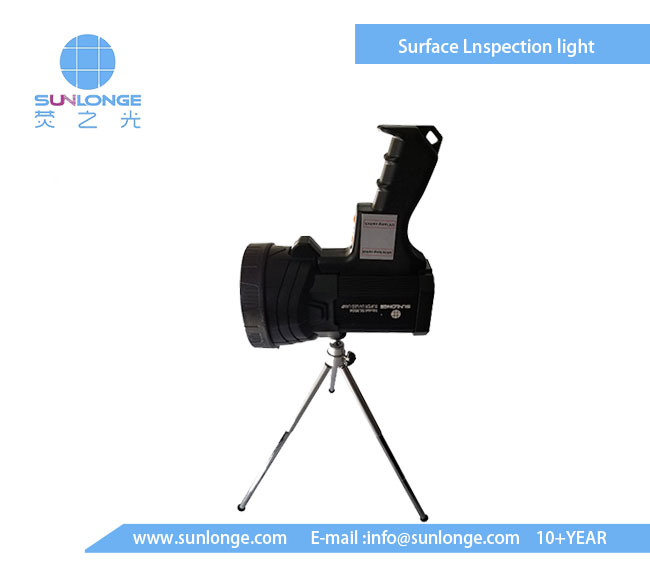

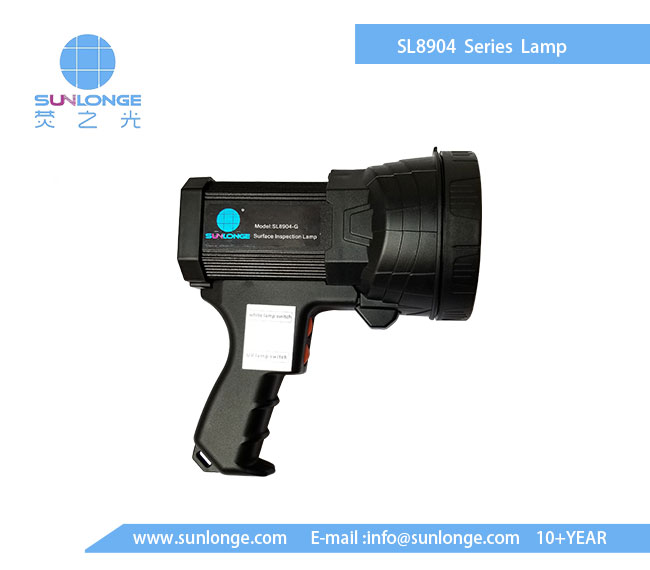

SL8904-G Green surface inspection Lamp with white side light

SL8904-G Green surface inspection Lamp with white side light

Product introduction:

Green surface inspection Lamp with white side light

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923
E-mail: info@sunlonge.com, sunlonge@gmail.com

SL8904-G Green surface inspection Lamp with white side light,Wafer Inspection Lamp

SPECIFICATIONS:

SL8904-G Green surface inspection Lamp with white side light

Model:SL8904-G Green surface inspection Lamp

1. Anodized high strength aluminum alloy, very durable

2.Use 4 pcs 5W 525 NM LED with lens and white side light, average LED life is 30,000 hours

3.light  Intensity:50000 lx  at 30cm

4.Irradiated Area in 38cm Distance:150*180mm

5.Power supply: 100-240 universal chargers  AC/50HZ; Polymer battery pack DC.

6:Irradiated Area in 45cm Distance:Ø20cm

7:Stability of Led Lamp: > 90%

8:Product Size:150*200*106 mm   ; Weight :660g without accessories

SL8904-G Green surface inspection Lamp with white side light

SL8904-G Green Wafer Inspection Lamp

Applications:

Quality inspection of TFT-LCD panel.

Quality inspection of color filters,touch panel

Quality inspection of Cell Gap MURA

Inspection of  film thinkness

Examination of surface flathess

Examination of optical film materials

urface evenness and  bubble inspection of polarizer attching.
