The Vulture UV LED LAMP SL8904 Series

The Vulture UV LED LAMP SL8904 Series:

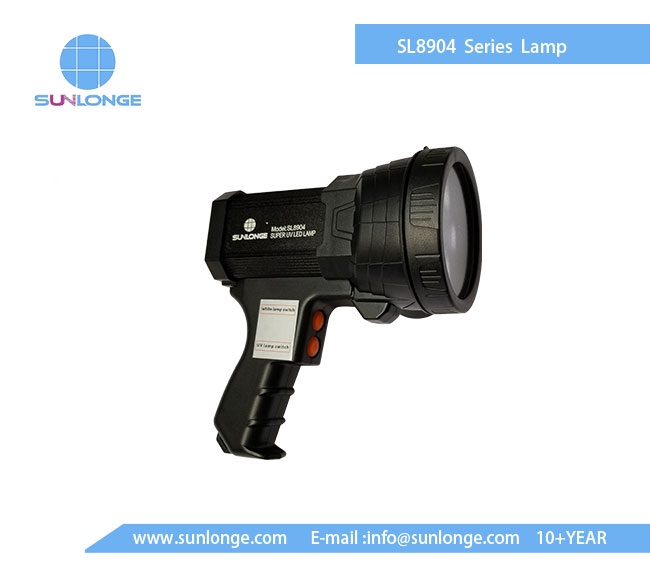

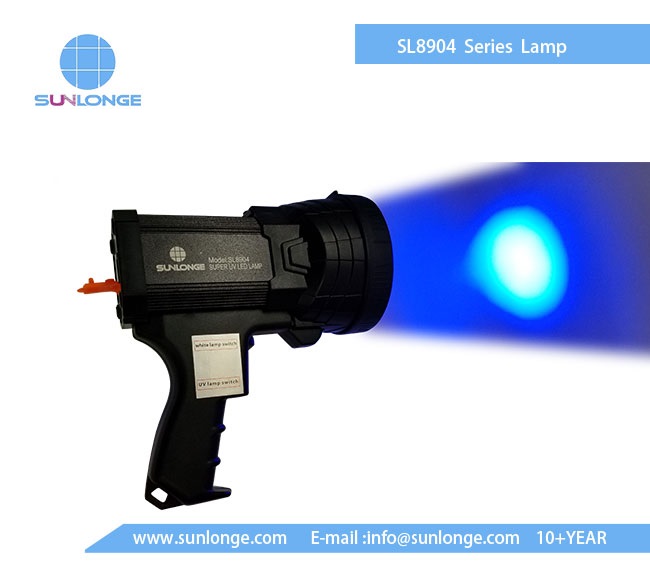

     The Vulture  UV LED LAMP SL8904 Series is the hand-held NDT inspection lamp with white light and UV light emissions as per to ASTM E 3022 and Rolls-Royce RRES 90061 Requirements;The Vulture SL8904  Series of inspection uv ndt lamp have been specifically designed to meet various industry standards. The beam profile of the UV NDT LAMP is extremely homogeneous without any footprints showing from the LED’s shades, dark spots or other disturbing defects; The Vulture SL8904  Series  feature 4 powerful UV-A (365 nm) LEDs plus 6  convenient white light LED

 SPECIFICATIONS:

 Model:The Vulture UV LED LAMP SL8904 Series;SL8904-Hight Version;SL8904-Standard Version;SL8904-Aerospace RRES90061 Abbreviation:SL8904-H;SL8904-S;SL8904-AR

 Peak-Wavelength:365-370NM;

 UV Intensity:4000-21000uw/cm2 at 15inch(380mm) -See the list;

 Low visible light emission :less than 2 foot-candles (22 lux)

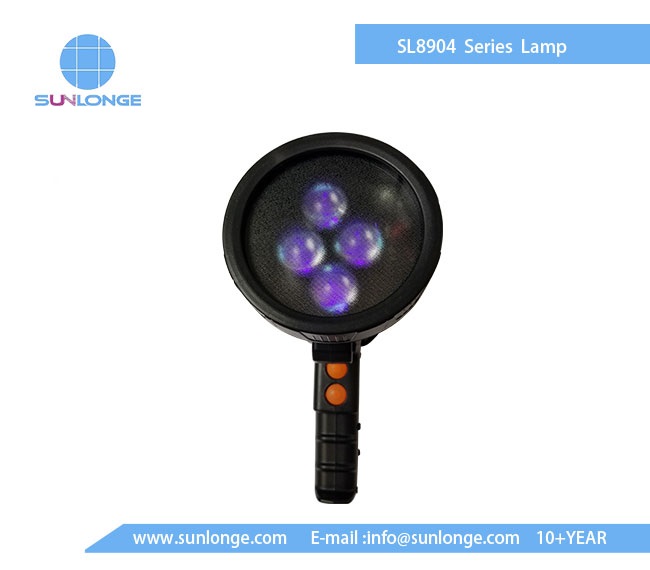

 Number of UV LEDs: 4 x 5W 365NM UV LED with lens,  6 White Light LED,average LED life is 30,000 hours

 Power supply: 100-240 universal chargers  AC/50HZ; Polymer battery pack DC.

 Irradiated Area in 38cm Distance:260*180mm

Stability of UV Intensity: > 90%

 Product Size: 180*190*106 mm   ; Weight :680g without  accessories;

 Model:The Vulture UV LED LAMP SL8904 Series;SL8904-Hight Version;SL8904-Standard Version;SL8904-Aerospace RRES90061

Abbreviation:SL8904-H;SL8904-S;SL8904-AR

(We master the core technology, We can adjust the intensity of the UV according to customer requirements requirements)

Model	SL8904-Aerospace RRES90061	SL8904-Standard Version	SL8904-Hight Version
Number of UV LEDs	4 x 5W 365NM   UV LED
White of LEDS	6   White Light LED(The side light)
UV Intensity at 15inch(380mm)	4000-5000uw/cm2	13600uw/cm2	22000uw/cm2
Visible light emission	< 0.5 FC(5 lux) with   white light filters Meets ASTM E3022 and  RRES 90061	< 2 FC(20 lux)  with black light filters	< 2 FC(20 lux)  with black light filters
Irradiated Area in 38cm Distance	186*260mm	136*180mm	126*160mm
Power supply	Polymer battery pack DC	The Same	The Same
Suitable for industry	All Aeronautics NDT	Except Aeronautics NDT	Except Aeronautics NDT

  Attention to SL8904-Aerospace RRES90061   Meets Rolls-Royce RRES 90061 Requirements ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant  Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI.

Features

●100% solid state circuit ensures working properly in strong magnetic field

●UV light and White light  can be used simultaneously, they use 2 separate switches

●Safe and pure UV-A content with no UV-B and UV-C,almost no visible light.

●The SL8904-AR  ndt lamp is less than 5000μW/cm2 at 380mm.

●Extremely large coverage area of up to 260mm, with a minimum UV-A intensity of 1,000 μW/cm2

●Unique mechanical cooling system keeps LEDs cool to maintain optimum light output during extended use.

●Each LED is with long expected lifespan of 30,000 hours.

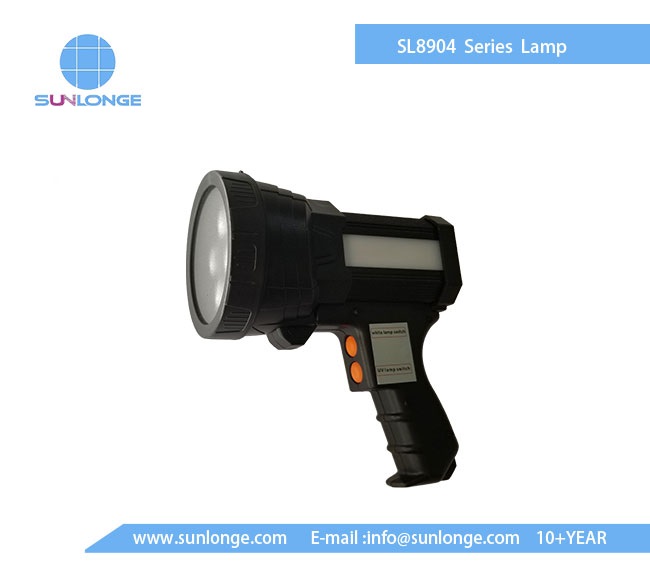

●The start button provide instant power and the light  use 2 separate switches -on the pistol handle for ease of use.

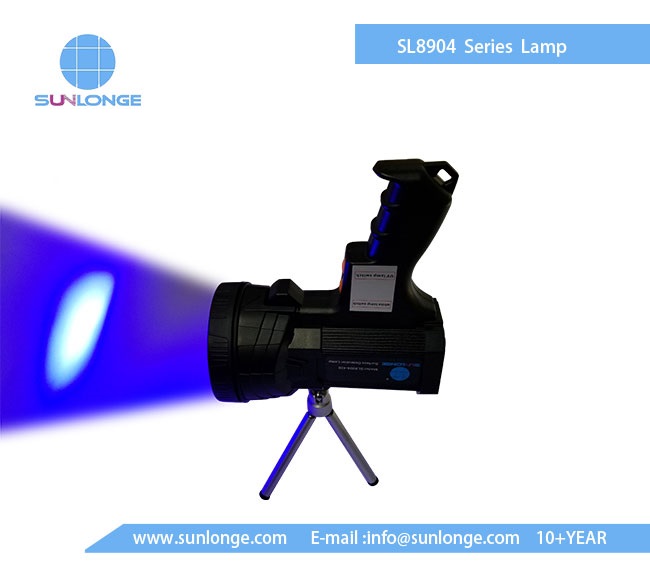

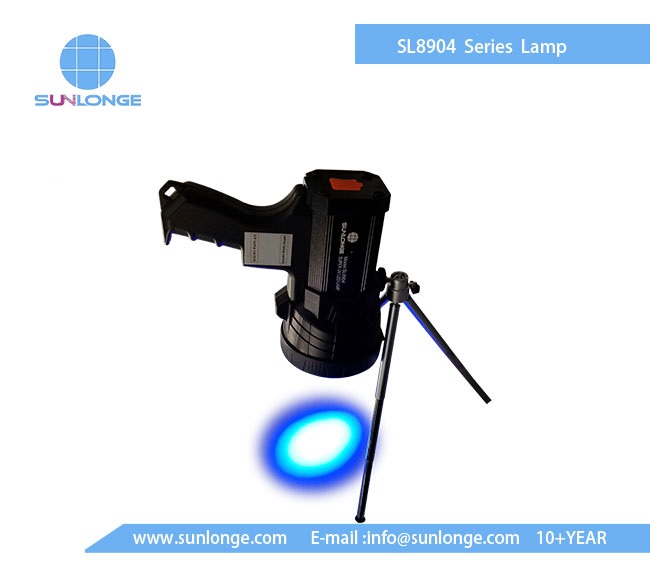

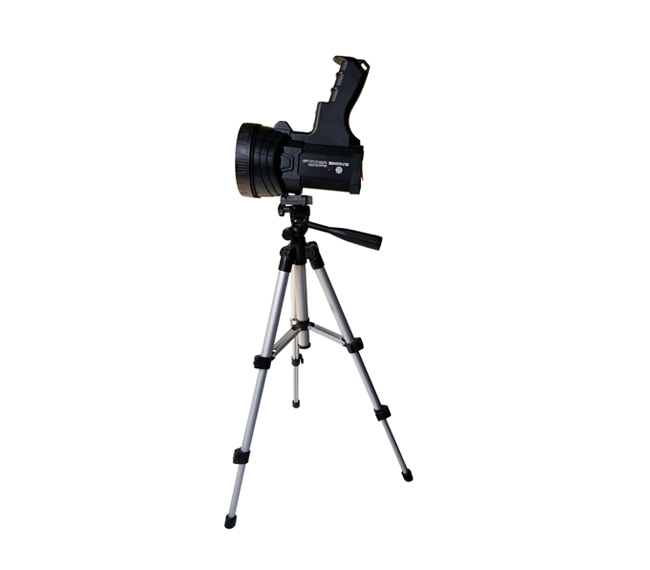

●The UV NDT LAMP can use the  tripod for easy operation and use in different situations

●Meet Wavelength specifications for FPI and MPI. IP54 approved for water spray and external bodies.

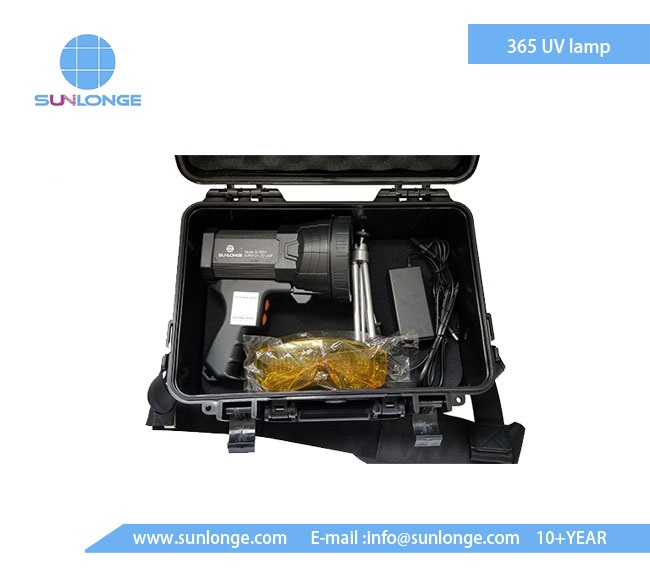

 STANDARD PACKAGE INCLUDING:

 SUPER UV LED LAMP SL8904, Charger, The Waterproof toolkit

 OPTIONAL ACCESSORIES:

 Spare UV Filter  Glasses ( orange or yellow); the  tripod

 Application:

 Penetration testing, fluorescence detection;Biopolymers, fluorescence observation

 Refrigerant leak detection;Engine oil leak detection

 Criminal Investigation: fingerprints, blood observed

 Fluorescence observation of ore;Detection of oil cleaning
