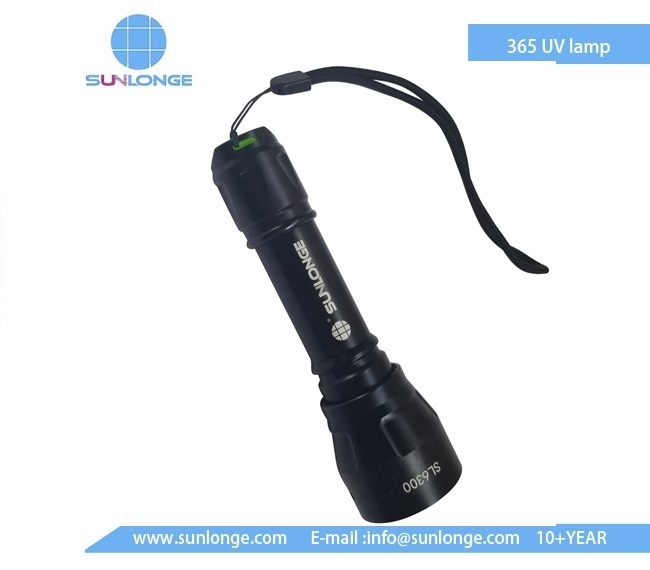

SL6300 Adjustable UV Flashlight
UV Leak Detection Flashlight UV Leak Detection Flashlight UV Leak Detection Flashlight UV Leak Detection Flashlight UV Leak Detection Flashlight UV Leak Detection Flashlight

SL6300 Adjustable UV Flashlight

Product introduction:

the headlamp Zoom in/Out by adjusting the front the head: UV Leak Detection Flashlight is 20 to 100mm, It can meet the needs of different customers.From your lens you can ajust the focal length

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923
E-mail: info@sunlonge.com, sunlonge@gmail.com

SL6300  Adjustable UV Flashlight

 SPECIFICATIONS:

Model: Super The  SL6300-UV adjustable-light beam UV LED Flashlight  (Abbreviation The viper SL6300-S ,SL8630-AR)

 Peak-Wavelength:365-370NM;

 UV Intensity: 1000-35000UW/cm2 at 15inch(380mm) -See the list;Low visible light emiss ion:less than 2 foot-candles (22 lux)

 Number of UV LEDs: 1 x 5W 365NM UV LED with lens, average LED life is 30,000 hours

 Power supply: 3.7V 2200 Mah  18650  lithium battery;

 Operating Time: 2.5 hours (continuous)

 Irradiated  Area in 38cm Distance:  Ø 30-100mm-See the list.

 Stability of UV Intensity: > 85%

 Product Size: 150*44mm  ;  WEIGHT :160 g without  accessories

SL6300 Adjustable UV Flashlight

 SL6300 Series: SL8300–Standard Version;SL8300-Aerospace RRES90061;

(We master the core technology, We can adjust the UV intensity  according to customer requirements)



Model

SL6300-S

SL6300-AR

Number of UV   LEDs

1   x 5W 365NM UV LED, Optical lens

1 x 5W 365NM   UV LED, Optical lens + filter

UV Intensity   at 15inch(380mm)

13000uw/cm2

4000uw/cm2

Visible light   emission

Less than 2 FC

< 0.5 FC(5   lux) with   white light filters Meets   ASTM E3022 and  RRES 90061

Irradiated   Area in 38cm Distance

100mm(Diameter)

30-100   mm(Diameter)

Power supply

Polymer battery   pack DC

Suitable for   industry

All Aeronautics NDT

Except Aeronautics NDT

SL6300 Adjustable UV Flashlight


Attention to:

SL6300-Aerospace RRES90061   Meets Rolls-Royce RRES 90061 Requirements,ASTM E1417, ASTM E1444, ASTM E 709, ASTM E2297, ASTM E3022 compliant

SL6300 Adjustable UV flashlight  FEATURES:

 1.A New Palm-Sized,  Hands Free Light Source!Ideal for fluorescent magnetic particle and penetrant testing, mining inspection and a variety of other specialized applications

 2.Adjustable UV Headlamp  feature a powerful UV-A (365 nm) LED light designed to free the users hands during an inspection

 3.The lamps  use the equipped with a constant current driver that keeps the UV intensity constant even when the battery fades;

 4.the headlamp  Zoom in/Out by adjusting the front the head: The whole light beam is 20 to 100mm, It can meet the needs of different customers.From your lens you can ajust the focal length

 STANDARD PACKAGE INCLUDING:

 Adjustable UV Flashlight  SL6300, Charger, carry case;

SL6300 Adjustable UV Flashlight

OPTIONAL ACCESSORIES:

Spare UV Filter  Glasses ( orange or yellow); 18650  lithium battery;
