SLM-310 White Light Meter

SLM-310 White Light Meter

Product introduction

SLM-310 White Light Meter for NDT

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923
E-mail: info@sunlonge.com, sunlonge@gmail.com

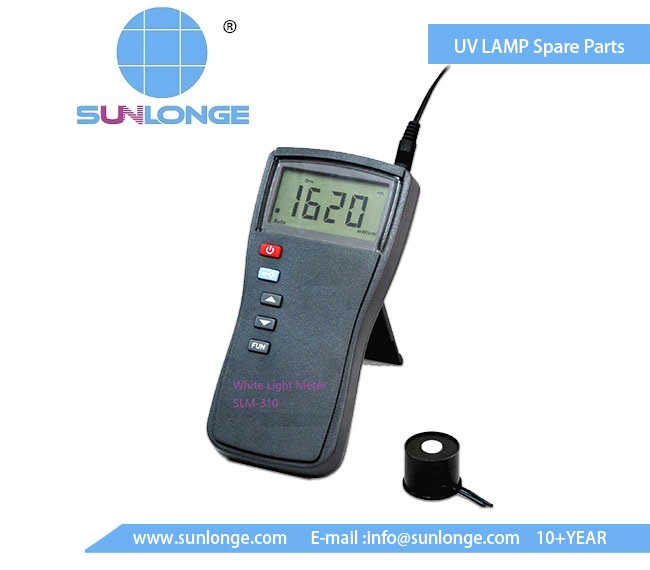

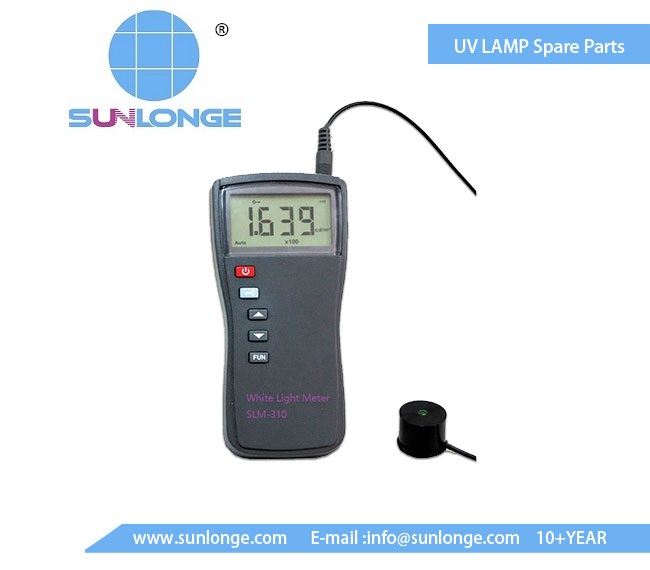

SLM-310  White  Light Meter

The white  Light Meter is a compact, rugged, easy to operate, multi-function white light Meter proven to be highly effective for measuring and calibrating Visible light emission light sources used in fluorescent magnetic particle and liquid penetrant NDT inspections.

    The Meter comes with a detachable remote sensor, high-contrast digital LCD display, 9V battery and protective storage case.

WHIGHT  LIGHT METER SPECIFICATIONS:

SLM310 WHITE LIGHT METER SPECIFICATIONS



Lighting Types

Visible light (400 – 760 nm)

Display

4-Digit LCD

Accuracy

± 5 %

Sampling Time

1 Second

Sensor Cord length

1.2M

Power Supply

DC 9V Battery



Dimensions (Unit)



16 x 78 x 4.3 cm

Weight (Unit)

7.05 oz. (0.2 kg)

Data Hold

Yes

Measuring range:

( 0.1199.9×1000) lux

Low Battery Warning

Yes

Warranty

Manufacturer 1 Year Limited



A:Accurately measures visible light by footcandles

B:Includes meter and white light meter sensor for NDT

C:Calibrated/Certified for NDT use,Silicon Photodiodes

D:Range for Lux: Accurately measures visible light by  lux

E:Range for Lux: ( 0.1199.9×1000 ) lux

F:Accuracy +/- 5% of reading ,whichever is greater

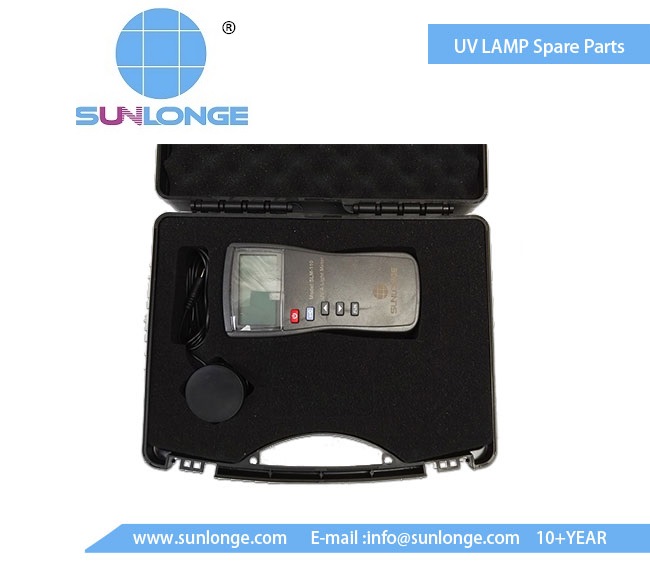

Meter comes with battery and carrying case
