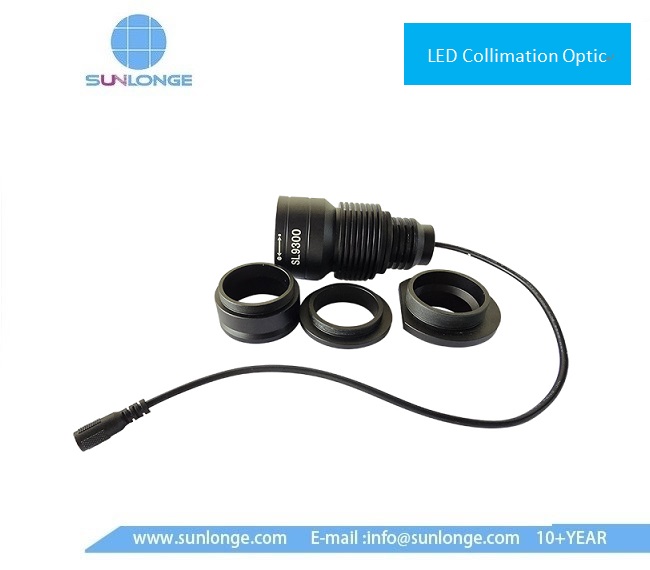

SLC9300 SUNLONGE  Collimated LED Light Sources; SLC900 Collimation Optic

SLC9300 SUNLONGE Collimated LED Light Sources; SLC900 Collimation Optic

Product introduction

Additional Information:

Tel: (852) 6740 3030; 0086-755-82153693
Fax: 0086-755-82483923
E-mail: info@sunlonge.com, sunlonge@gmail.com

SLC9300 SUNLONGE The collimated LED  Flexible gooseneck lamp holder and power supply;Light modulator: a customize-design dimmer, can be adjust the brightness ofCollimated LED Light , from 0-100%;Flexible gooseneck lamp holder and power supply, The head can be rotated :The SLC9300 controls the size of the irradiated area by adjusting the size of the focal lengthSLC9300 SUNLONGE The collimated LED can be connected to other components through SM2 threads.epi-fluorescence port of fluorescence microscope, or SUNLONGE The collimated LED direct illumination of various targets like microplate, petri dish etc,They are easy for customers to use and choose



Product Details:

SLC9300 the Collimated LED Light Sources consists of a collimating lens and an LED  Controller. SUNLONGE Collimated LED Light Sources  built-in adjustable and employ a high-NA aspherical collimating lens for precision collimation and high light throughput.

SLC9300 Collimated LED Light Sources can be used as the light source in an illumination system microscope;applications such as microscope illumination, multicolor fluorophore excitation..For example LED collimators can replace the standard lamp assembly in a microscope to provide stable, intense, and fast-modulated illumination.

SUNLONGE The collimated LED direct illumination of various targets like microplate, petri dish etc,They are easy for customers to use and choose

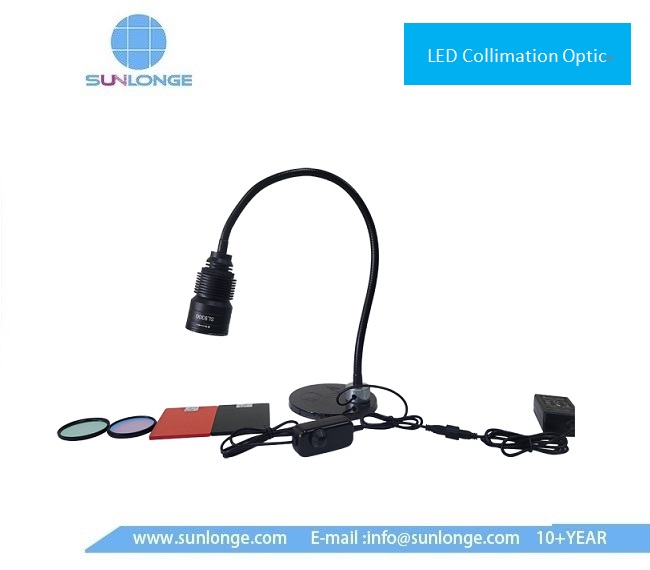

Flexible gooseneck lamp holder and power supply, modular light source, can be combined freely.

Light modulator: a customize-design dimmer, can be adjust the brightness ofCollimated LED Light , from 0-100%,

Parameters Table:

Model: SLC9300 Collimated LED Light Source
Wavelength 365NM/395NM/405NM/455NM/525NM/625NM
Electric Power 30 W
Beam area(MM) 60-150MM
Dimming 10-100% Had rotation dimming and light modulator
Optical Power Modulator(Input110-240V, Output: 12-24V,1.5A)Infinitely dimming
Size and weight Size: 138 x10 mm(Round base),Arm length:600mm,Lamp head:63*116MM; Weight:2.3KG(w/o AC modulator)180 * 190 * 106mm;

 LED Typical Optical Characteristics:

Peak Wavelength(nm) Range(nm) Maximum Optical Power(mW) Spectral FWHM(nm)
365 365-370 2000 17
395 395-400 1200 13
405 400-405 1500 13
450 450-460 3000 16
530 525-530 1300 85
550 550-560 1300 85
595 590-600 1200 85
630 625-630 1300 17

Features:

1.Flexible gooseneck lamp holder and power supply,SUNLONGE The collimated LED direct illumination of various targets like microplate, petri dish etc,They are easy for customers to use and choose;

2.Light modulator: a customize-design dimmer, can be adjust the brightness of excitation light source, from 0-100%,;

3.The head can be rotated :The SLC9300 controls the size of the irradiated area by adjusting the size of the focal length;can be adjust the brightness of excitation light source, from 0-100%,;

4.Different narrow band filters can be used: conventional ones are 455NM/525NN/625, etc.

5.Multiple mounting features for lab and OEM applications

Applications:

Microscope illuminator

General purpose light source
