SLF9300 Dual wavelength excitation light source introduction

Dual wavelength excitation light source SLF9300 introduction:

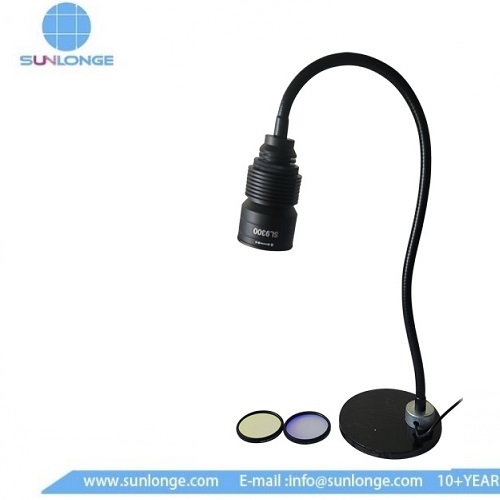

Dual wavelength fluorescence excitation light source SLF9300 is with 1 pcs imported LED and customize-design filter. One lamp with dual wavelength, can excite different fluorescent proteins to fluoresces.SLF9300 is with desktop design, compact lamp head with gooseneck hose and a magnetic base, portable and easy to move in the inspection.

In the real inspection, dual wavelength can better fulfill the protein fluorescence excitation demand. We developed the SLF9300 dual wavelength series, 1 pcs LED with different customize-design filter, achieving two wavelength transformation. The observation filter for photography, without destroying the stereo microscope, easily observe all the protein excitation result.

In addition, we can customize-design excitation light source for customer with different request. Now SLF9300 general excitation light source is SLF9300-B 455 blue light and SLF9300-G 525NM green light.

Dual wavelength excitation light source SLF9300 technical parameter:

Model	SLF9600-B	SLF8804-G	Remark
LED No and specification	1pc 20W 6000K+1 pcs 455NM blue narrow band filter	1pcs 20W 6000K+1 pcs 525NM green narrow band filter	We can customization according to customer demand.
	Customization according to customer request
Illuminance（30cm）	28600uw/cm2-365NM 13500LX-455NM	13500LX-455NM 40000LX-525NM
Beam area（MM）	○180MM	○220MM
Switch	Rotate the lamp head and infinitely dimming.
Lifespan	30000H
Power supply	Modulator（Input110-240V, Output: 12-24V,1A）Infinitely dimming
Size and weight	Size: 138 x10 mm(Round base)，Arm length:600mm，Lamp head：63*116MM; Weight：2.3KG(w/o AC modulator)180 * 190 * 106mm;



SLF9300 series abbreviation and code:

SLF-9300XX

365NM ultraviolet Abbreviation–U        395NM violet Abbreviation—V

455NM blue light Abbreviation–B         525NM green light Abbreviation–G

595NM amber light Abbreviation–A        625NM red light Abbreviation-R

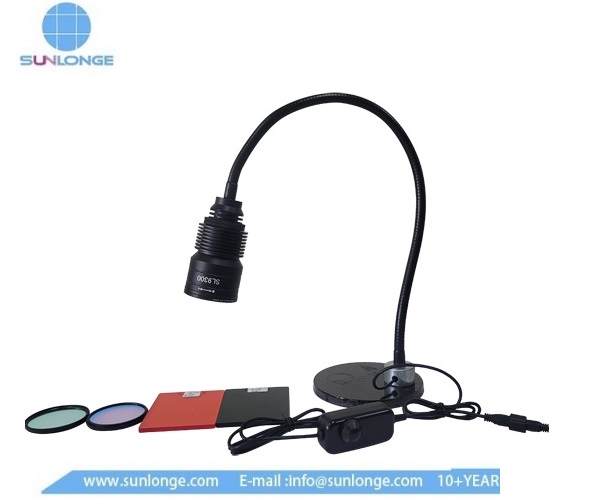

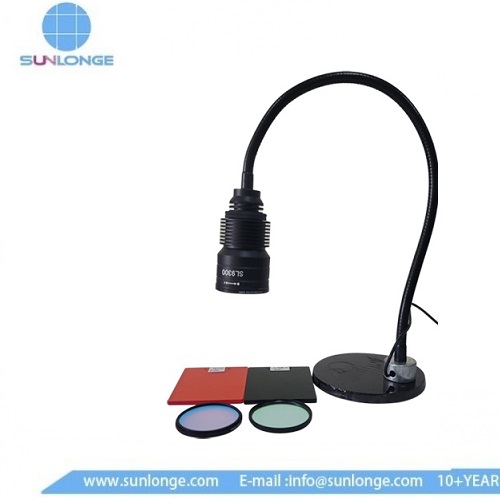

Dual wavelength fluorescence excitation light source SLF9300 full packaging:

1. Dual wavelength excitation light source SLF9300 lamp.
2. SLF800 adapter ring for microscope, connect any stereo microscope and filter.
3. Modulator. Customize-design modulator, adjust the illuminance of excitation light source, 0%-100%.
4. Filter. Generally 3 filter option（SLF400-UV;SLF500-blue light；SLF600-green light）


Dual wavelength excitation light source SLF9300 features:

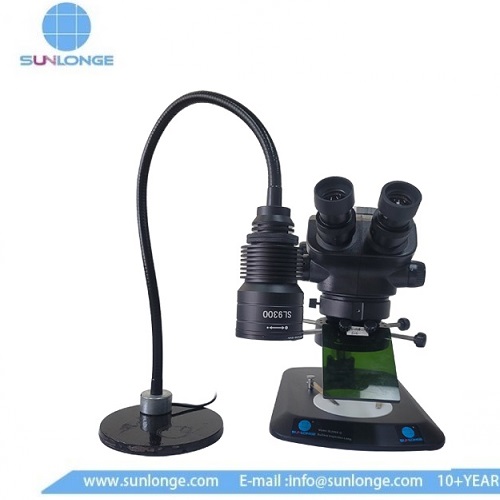

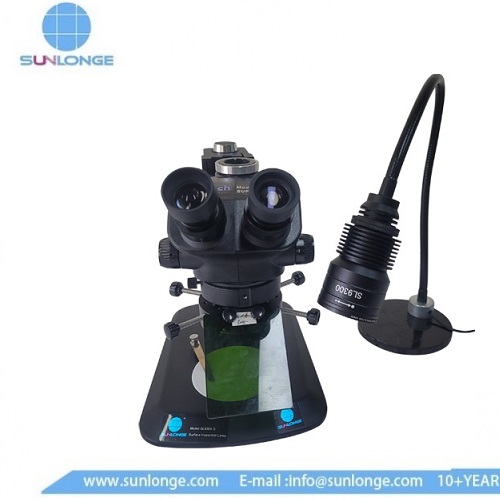

1. The dual wavelength stereo microscope excitation light source SLF9300-X can offer a complete solution for the stereo microscopes. It includes everything need to adapt(not convert) any stereo microscope.
2. The dual wavelength body microscope excitation light source SLF9300-X, with 2 wavelengths of excitation light source, can solve all the problems in the test, or you can choose one of the options; offer customers a better choice.
3. Simple changing different narrow band filters and observation filters, you can have a different excitation light source, convenient and easy.
4. Infinite dimming function, adjust the illuminance according to test demand.

Observables fluoresces list at various wavelengths：

U: excitation wavelength 330nm~400nm Emission wavelength: 425nm

V: excitation wavelength 395nm~415nm Emission wavelength:455nm

U: excitation wavelength:420nm~485nm Emission wavelength:515nm

G: excitation wavelength:460nm~550nm Emission wavelength:590nm



G: excitation wavelength:460nm~550nm Emission wavelength:590nm



Suffix code	Excitation	Emission	Observable fluoresces
365NM-U	365NM	425NM	DAPI
395NM-V	395NM	455NM	CFP,BFP
455NM-B	455NM	510NM	GFP,fluorescein
525-G	525NM	595NM	DsRed,TdTomato
