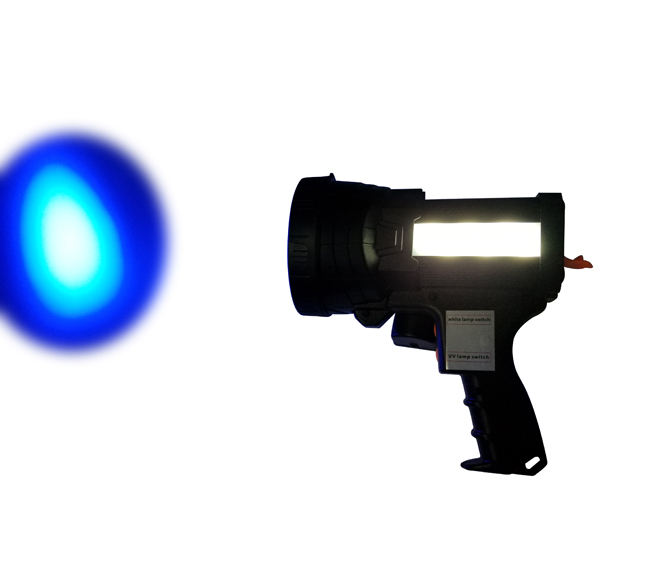

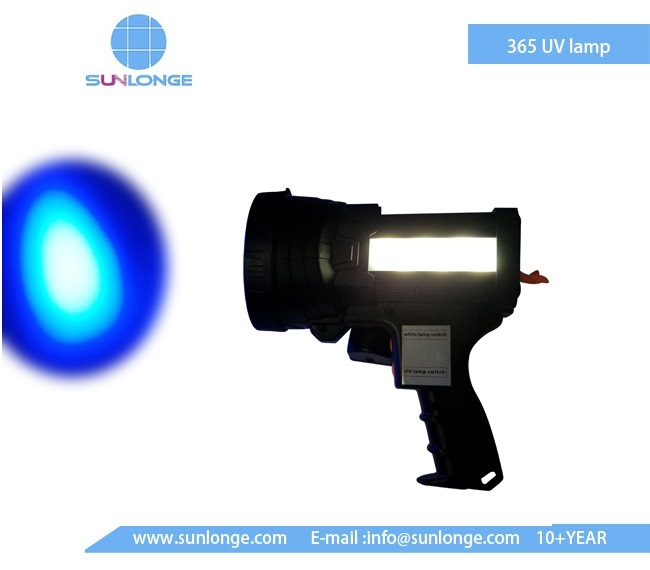

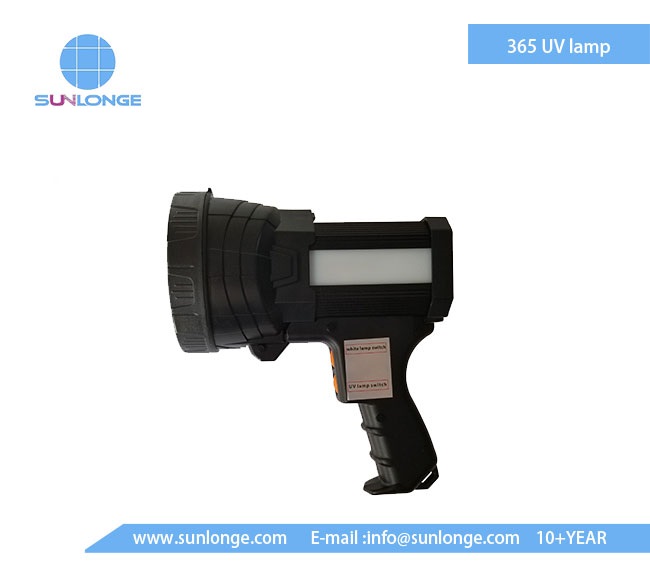

SL8906-UB inspection lamp is with 6 pcs powerful LED, with 2 different wavelength combination,3 pcs 365NM green light, 3 pcs 455NM blue light (you can choose different wavelength combination:365NM,395NM,455NM,525NM,595NM,625NM,6000K), white light LED on side for lighting. In real application, a lamp with multi-wavelength can better meet the test demand. According to our full experience in this field, a lamp with two wavelength is a better option. According to the customer requirement and demand from market, we developed the SL8906 series to meet different test requirement.
SPECIFICATIONS:
SL8906-UG hand held multi-wavelength inspection lamp parameter.
|
Model |
SL8906-UB |
SL8904-BG |
Remark |
|
LED NO and Spe |
3 pcs 5W 365NM and 3 pcs 455NM LED |
3 pcs 5W 455NM and 3 pcs 525NM LED |
Customize according to customer demand |
|
365NM,395NM,455NM,525NM,595NM,625NM,6000K, Two different wavelength combination. |
|||
|
Side light |
6pcs white light LED |
||
|
luminance（30cm） |
28600uw/cm2-365NM 13500LX-455NM |
13500LX-455NM 40000LX-525NM |
|
|
Irradiance（MM） |
○220MM—365NM; ○180MM—455NM |
○180MM—525NM; ○220MM—595NM |
|
|
Switch mode |
1 switch for side light，the other for the inspection lamp. |
||
|
Lifespan |
30000H |
||
|
Power |
Lithium battery，4H running time for inspection lamp. Side light exceeds 10H. |
||
|
Size and weight |
ABS + Aluminum alloy，180 * 190 * 106mm; Net： 0.68KG |
||
|

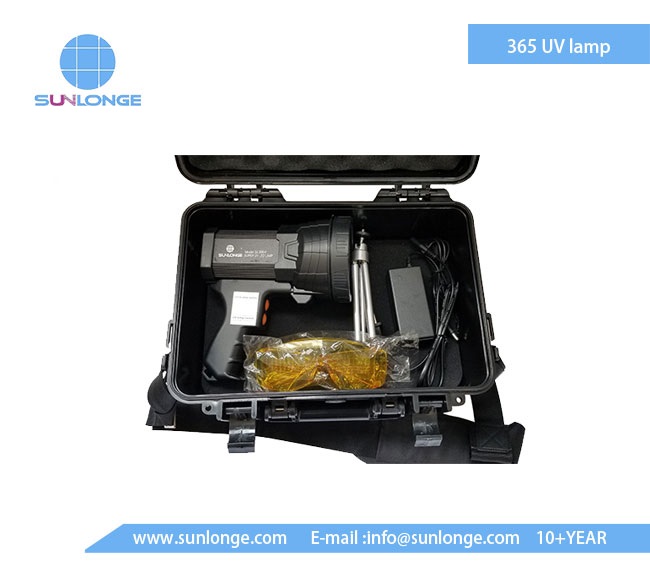

Accessory |
Tripod，protective glasses |
||
Features:
1.SL8906-UB multi-function inspection lamp is with 6 pcs powerful LED, with 2 different wavelength combination,3 pcs 365NM green light, 3 pcs 455 blue light. (you can choose different wavelength combination: 365NM,395NM,455NM,525NM,595NM,625NM,6000K), side lighting function as well.
2. SL8906-UB multi-function inspection lamp, with 2 different wavelength combination, can meet different inspection demand from clients and test the defect and flaw as well.

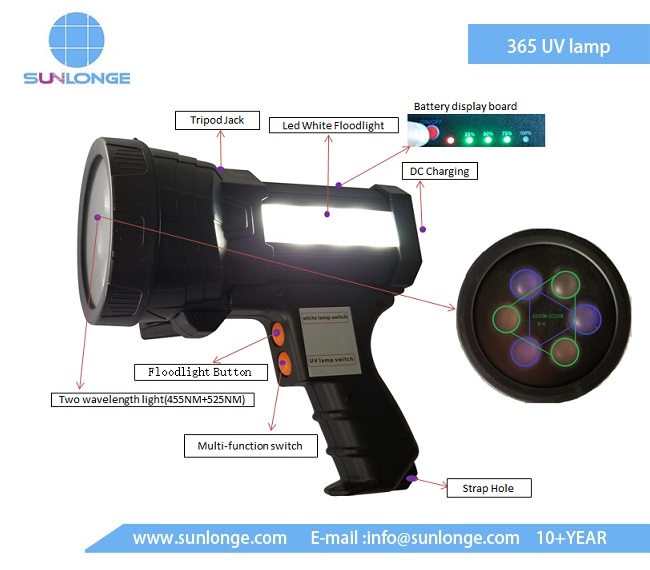

3With while light LED on side for lighting, the SL8906-GW lamp is with 2 separate switches, 1 for side light, the other for inspection lamp (ON-525NM-6000K-Off)
4. Tripod can be provided for special request, free from hands, easy operation in different application.
5. Unique mechanical cooling system can help cool down the lamp quickly, maintaining the optimal wavelength output in long time running
6. We can customize the different inspection lamps according to customer demand, with our optical lens technology.
Observable fluorescent wavelength:
UV: Excitation wavelength 330~400NM Emission wavelength:425NM
Purple: Excitation wavelength 395~415NM Emission wavelength:455NM
Blue: Excitation wavelength 420~485NM Emission wavelength:515NM
Green: Excitation wavelength 460~550NM Emission wavelength:590NM
|
Code of excitation light source |
Excitation wavelength |
Emission Wavelength |
Observable fluorescence |
|
365NM-U |
365NM |
425NM |
DAPI |
|
395NM-V |
395NM |
455NM |
CFP,BFP |
|
455NM-B |
455NM |
510NM |
GFP,fluorescein |
|
525-G |
525NM |
595NM |
DsRed,TdTomato |
SL8906 series Lamp Abbreviation and code:
SL-8906XX
365NM ultraviolet Abbreviation–U; 395NM violet Abbreviation—V;
455NM blue light Abbreviation–B; 525NM green light Abbreviation–G;
595NM amber light Abbreviation–A; 625NM red lightAbbreviation-R;
6000k white light Abbreviation–W
